Eighteen Sound ND2080A 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /ND2080A

Media

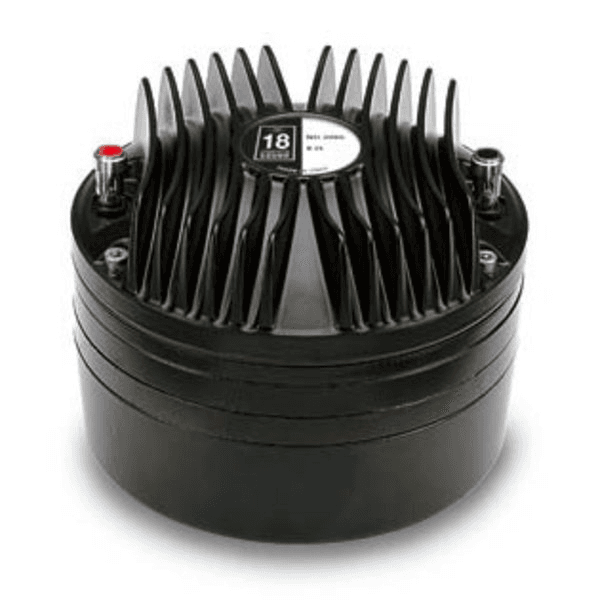

Eighteen Sound ND2080A 2 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound ND2080A

Eighteen Sound ND2080A is a 2" 16 ohm compression driver rated at 80W RMS. The source-backed specifications include sensitivity 112dB, range from 500Hz, to 20000Hz, throat 51mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
2"
Impedance
16Ω
RMS Power
80W
Sensitivity
112.0dB
Datasheet

Technical Specifications

Canonical
SPL112dB
Power80W
Power Nominal80W
Impedance16Ω
Min Impedance10.1Ω
F Low500Hz
F High20000Hz
Xover800Hz
Throat51mm
Voice Coil75mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight3.4kg
Diameter131.0mm
Overall Depth99.0mm
