Eighteen Sound ND2080 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /ND2080

Media

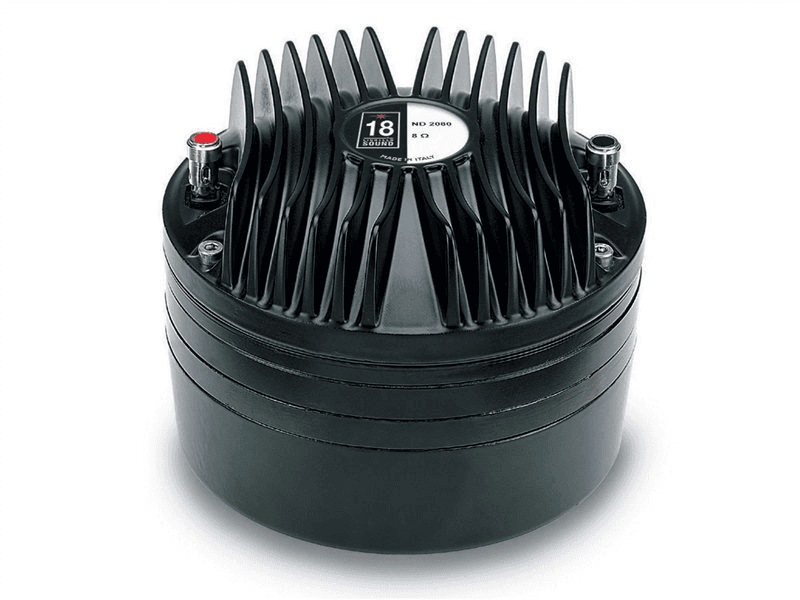

Eighteen Sound ND2080 2 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound ND2080

Eighteen Sound ND2080 is a 2" 16 ohm compression driver rated at 100W RMS. The source-backed specifications include sensitivity 110dB, range from 500Hz, to 20000Hz, throat 50mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
2"
Impedance
16Ω
RMS Power
100W
Sensitivity
110.0dB
Datasheet

Technical Specifications

Canonical
SPL110dB
Power100W
Power Nominal100W
Impedance16Ω
Min Impedance10.2Ω
F Low500Hz
F High20000Hz
Xover800Hz
Throat50mm
Voice Coil75mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight3.4kg
Diameter131.0mm
Overall Depth99.0mm
