1-inch compression driver · 44 mm voice coil · 50 W

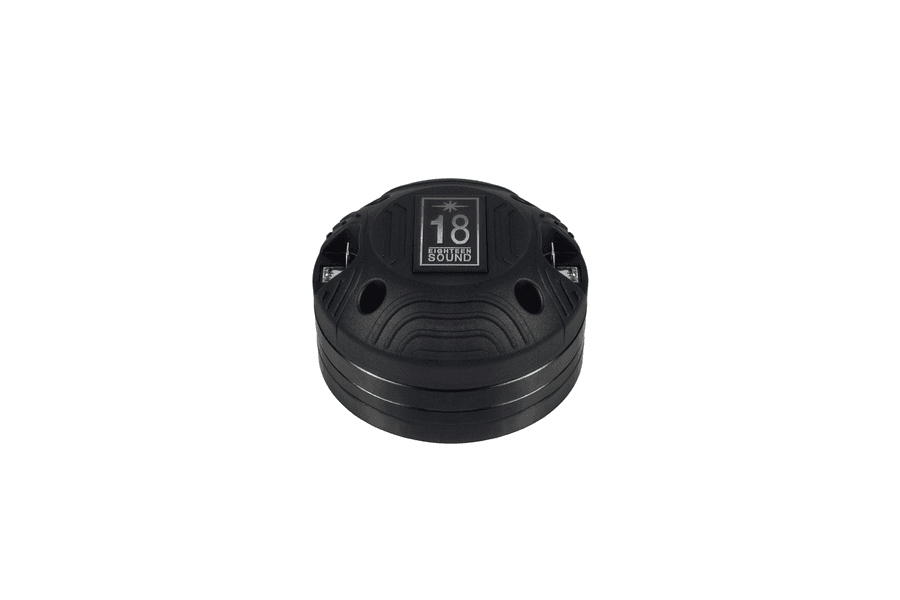

Eighteen Sound ND1TP 16Ω
No price for delivery to the UK
- SPL
- 110dB
- Pe
- 50W
- Xover
- 1600Hz
- Throat
- 25mm
- VC
- 44mm
Published graphs
Eighteen Sound ND1TP is a 1-inch 16 ohm compression driver rated at 50 W RMS. The source-backed specifications include sensitivity 110 dB, throat 25 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Frequency range (low), Frequency range (high)
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Motor and cone
- Voice coil
- 44mm
Power and response
- Sensitivity
- 110dB
- Power
- 50W
- Nominal power
- 50W
- Impedance
- 16Ω
- Min. impedance
- 12Ω
- Crossover
- 1600Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 85mm
- Depth
- 46mm
- Weight
- 0.9kg
Other published values
- Power Program
- 100
Everything else Eighteen Sound lists
HF · Primary · 1″
- SPL
- 110dB
- Power
- 50W
- Impedance
- 16Ω
- Sensitivity
- 110dB
- Nominal power
- 50W
- Power Program
- 100
- Throat
- 25mm
- Manufacturer sensitivity
- 110dB
- Min. impedance
- 12Ω
- Voice coil
- 44mm
- Crossover
- 1600Hz
- Weight
- 0.9kg
- Diameter
- 85mm
- Depth
- 46mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £186.83 | Back order | Visit shop at Lean Audio |
