Eighteen Sound ND1460A 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /ND1460A

Media

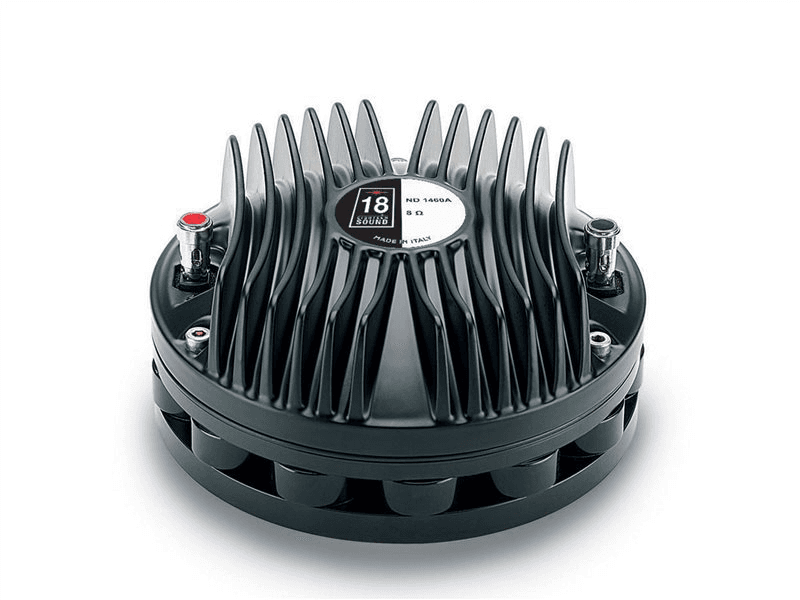

Eighteen Sound ND1460A 1.4 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound ND1460A

Eighteen Sound ND1460A is a 1.5" 16 ohm compression driver rated at 80W RMS. The source-backed specifications include sensitivity 110dB, range from 500Hz, to 20000Hz, throat 35mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
16Ω
RMS Power
80W
Sensitivity
110.0dB
Datasheet

Technical Specifications

Canonical
SPL110dB
Power80W
Power Nominal80W
Impedance16Ω
Min Impedance10.0Ω
F Low500Hz
F High20000Hz
Xover800Hz
Throat35mm
Voice Coil75mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight3.2kg
Diameter132.0mm
Overall Depth62.0mm
