Eighteen Sound ND1460 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /ND1460

Media

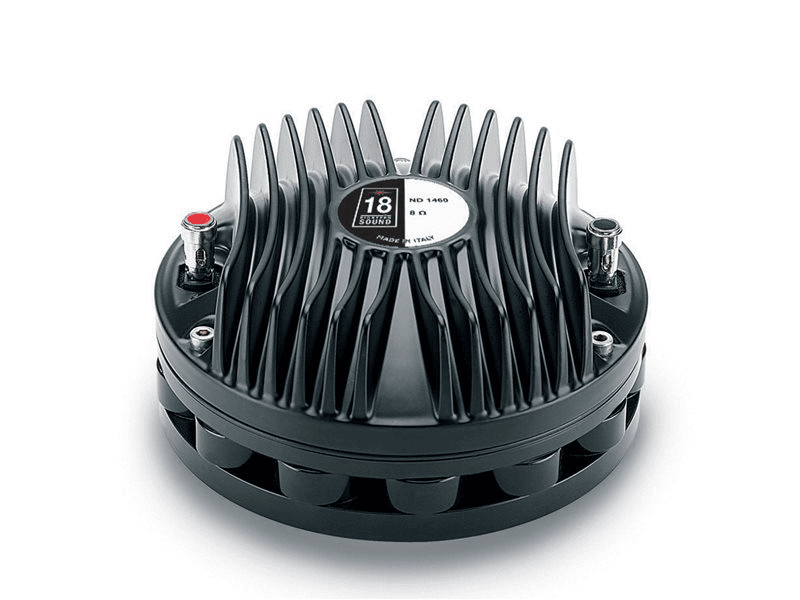

Eighteen Sound ND1460 1.4 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound ND1460

Eighteen Sound ND1460 is a 1.5" 16 ohm compression driver rated at 100W RMS. The source-backed specifications include sensitivity 109dB, range from 500Hz, to 20000Hz, throat 35mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
16Ω
RMS Power
100W
Sensitivity
109.0dB
Datasheet

Technical Specifications

Canonical
SPL109dB
Power100W
Power Nominal100W
Impedance16Ω
Min Impedance9.9Ω
F Low500Hz
F High20000Hz
Xover800Hz
Throat35mm
Voice Coil75mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight2.9kg
Diameter132.0mm
Overall Depth62.0mm
