Eighteen Sound HD125 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /HD125

Media

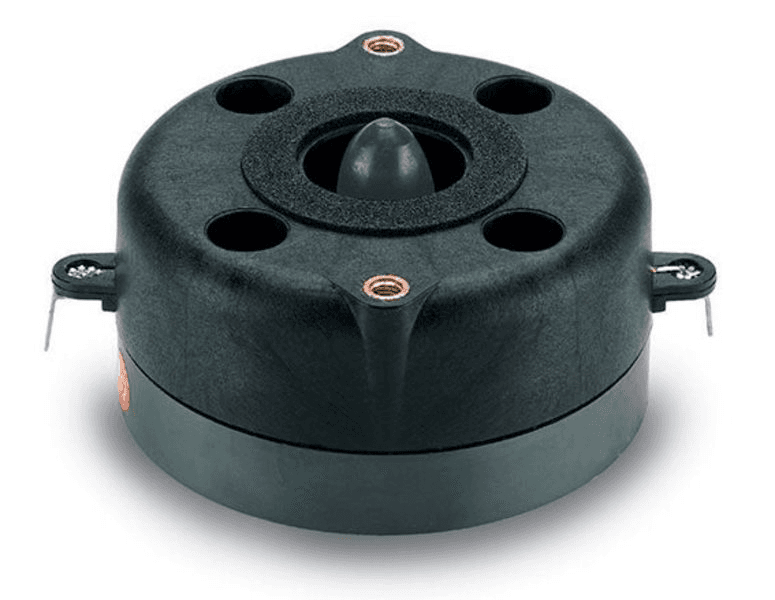

Eighteen Sound HD125 1 inch 16 ohm loudspeaker driver

Overview

Compression Driver
Eighteen Sound

Eighteen Sound HD125

Eighteen Sound HD125 is a 1" 16 ohm compression driver rated at 25W RMS. The source-backed specifications include sensitivity 109dB, range from 2000Hz, to 18000Hz, throat 25mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
16Ω
RMS Power
25W
Sensitivity
109.0dB
Datasheet

Technical Specifications

Canonical
SPL109dB
Power25W
Power Nominal25W
Impedance16Ω
Min Impedance10.7Ω
F Low2000Hz
F High18000Hz
Xover2500Hz
Throat25mm
Voice Coil25mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight0.8kg
Diameter87.0mm
Overall Depth46.0mm
