Celestion TSQ2460-8 8Ω
8 Ω · 20–200 Hz
£899.00
SteadyLean Audio · 2 in stock · All 2 offers
- Fs
- 29Hz
- Xmax
- 18.8mm
- SPL
- 95dB
- Pe
- 2500W
- BL
- 42.7T·m
- Vd
- 4198cm³
- Qts
- 0.34
- Vas
- 311L

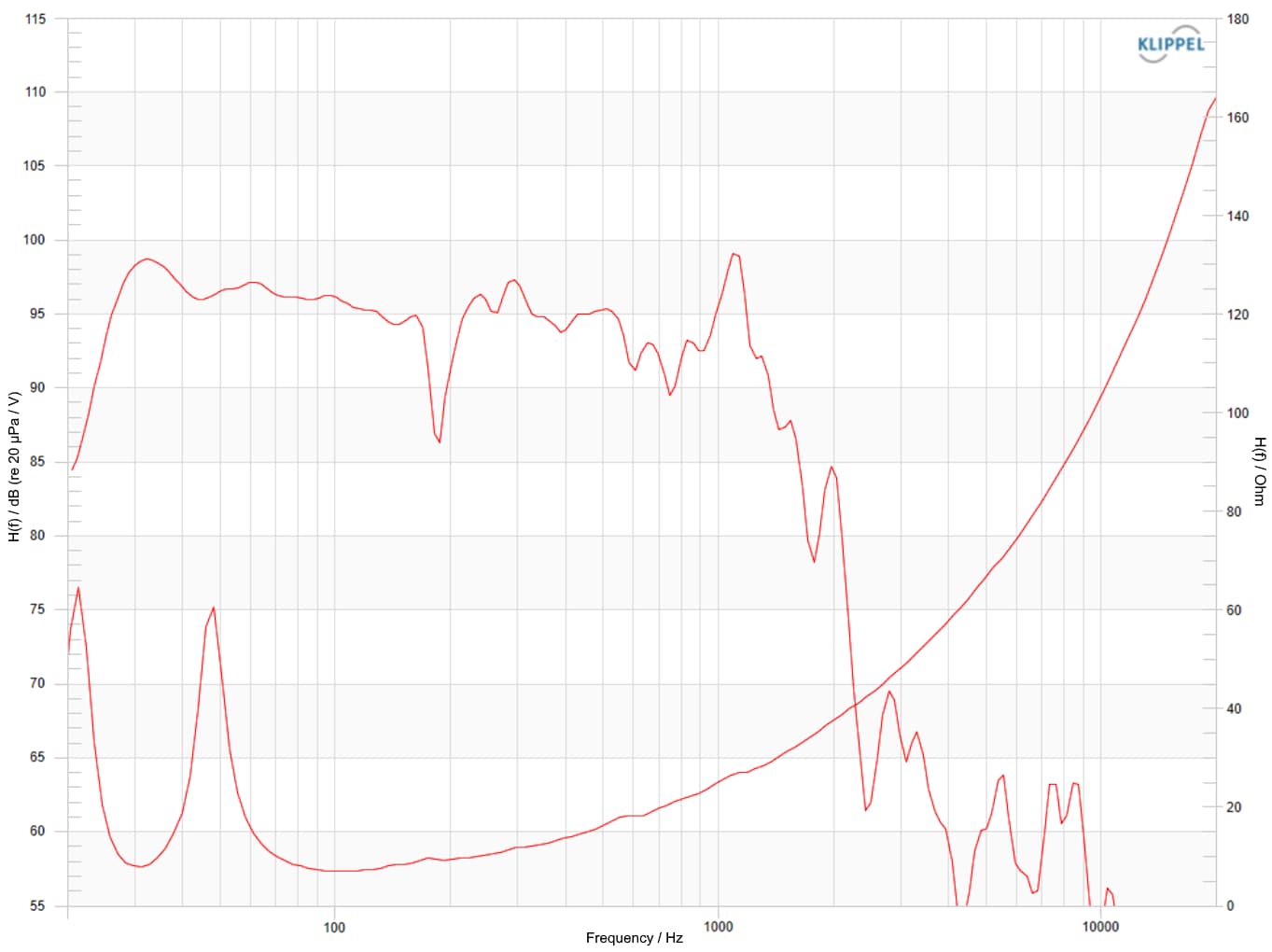

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
LF frequency response
Frequency response
113 plotted pointsSource file SHA-256 cca621ed032a…Medium confidence221 selected pixels of 332

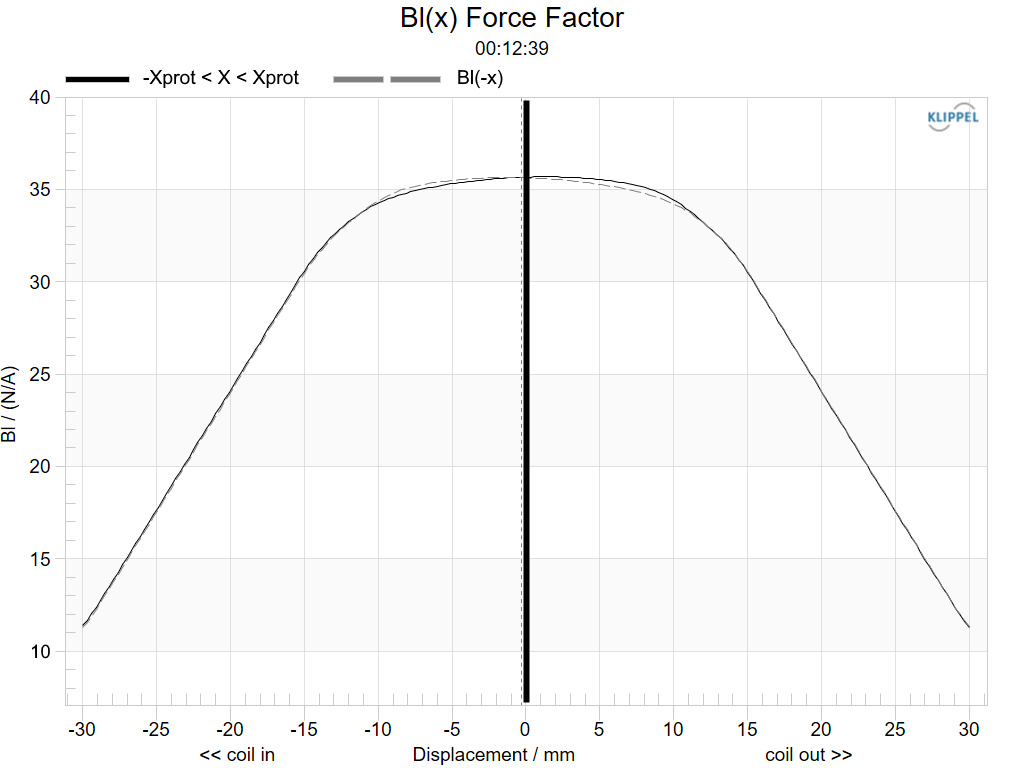

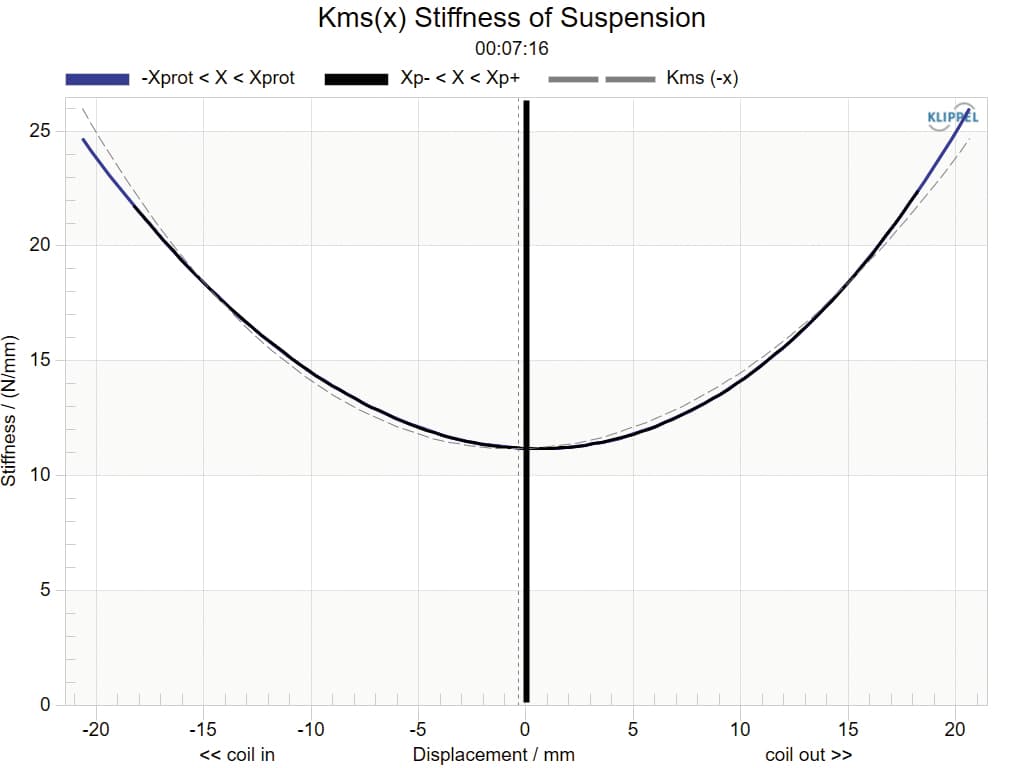

Published graphs
Celestion TSQ2460-8 is a 24-inch 8 ohm LF driver rated at 2500 W RMS. The validated T/S data includes Fs 29 Hz, Qts 0.34, Vas 310.6 L, Xmax 18.8 mm, sensitivity 95.3 dB, plus 4198 cm³ Vd and 82 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £899.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 29Hz
- Qts
- 0.34
- Qes
- 0.35
- Qms
- 11.3
- Vas
- 310.6L
- Re
- 5.3Ω
- Le
- 3.13mH
Motor and cone
- BL
- 42.7T·m
- Sd
- 2239cm²
- Mms
- 648g
- Xmax
- 18.8mm
- Vd †
- 4198cm³
- Voice coil
- 152mm
Power and response
- Sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 98dB
- Power
- 2500W
- Impedance
- 8Ω
- Range
- 20–200Hz
- EBP †
- 82 · Sealed or vented
Size and mounting
- Diameter
- 627mm
- Cutout
- 573mm
- Bolt circle
- 606mm
- Depth
- 280mm
- Weight
- 22kg
Other published values
- Cms
- 0.044mm/N
- Rms
- 10.73kg/s
- Power Program
- 5000
Sensitivity shows 95.3 dB, calculated from the T/S values. Celestion publishes 98.0 dB, 2.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 24″
- BL
- 42.7T·m
- Fs
- 29Hz
- Le
- 3.13mH
- Re
- 5.3Ω
- Sd
- 2239cm²
- Cms
- 0.044mm/N
- Mms
- 648g
- Qes
- 0.35
- Qms
- 11.3
- Qts
- 0.34
- Rms
- 10.73kg/s
- SPL
- 95.3dB
- Vas
- 310.6L
- Xmax
- 18.8mm
- Power
- 2500W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 20Hz
- Power Program
- 5000
- Calculated sensitivity †
- 95.3dB
- High limit
- 200Hz
- Manufacturer sensitivity
- 98dB
- Voice coil
- 152mm
- Weight
- 22kg
- Diameter
- 627mm
- Depth
- 280mm
- Cutout
- 573mm
- Bolt circle
- 606mm
