Overview
LF DriverTSQ2460 series
Celestion
Celestion TSQ2460-4
Celestion TSQ2460-4 is a 24" 4 ohm LF driver rated at 2500W RMS. The validated T/S data includes Fs 27Hz, Qts 0.30, Vas 344.5L, Xmax 18.8mm, sensitivity 95.4dB, plus 4198cm³ Vd and 87 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
24"
Impedance
4Ω
RMS Power
2500W
Sensitivity
95.4dB
98.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
87
Either alignment
Vd
4198cm³

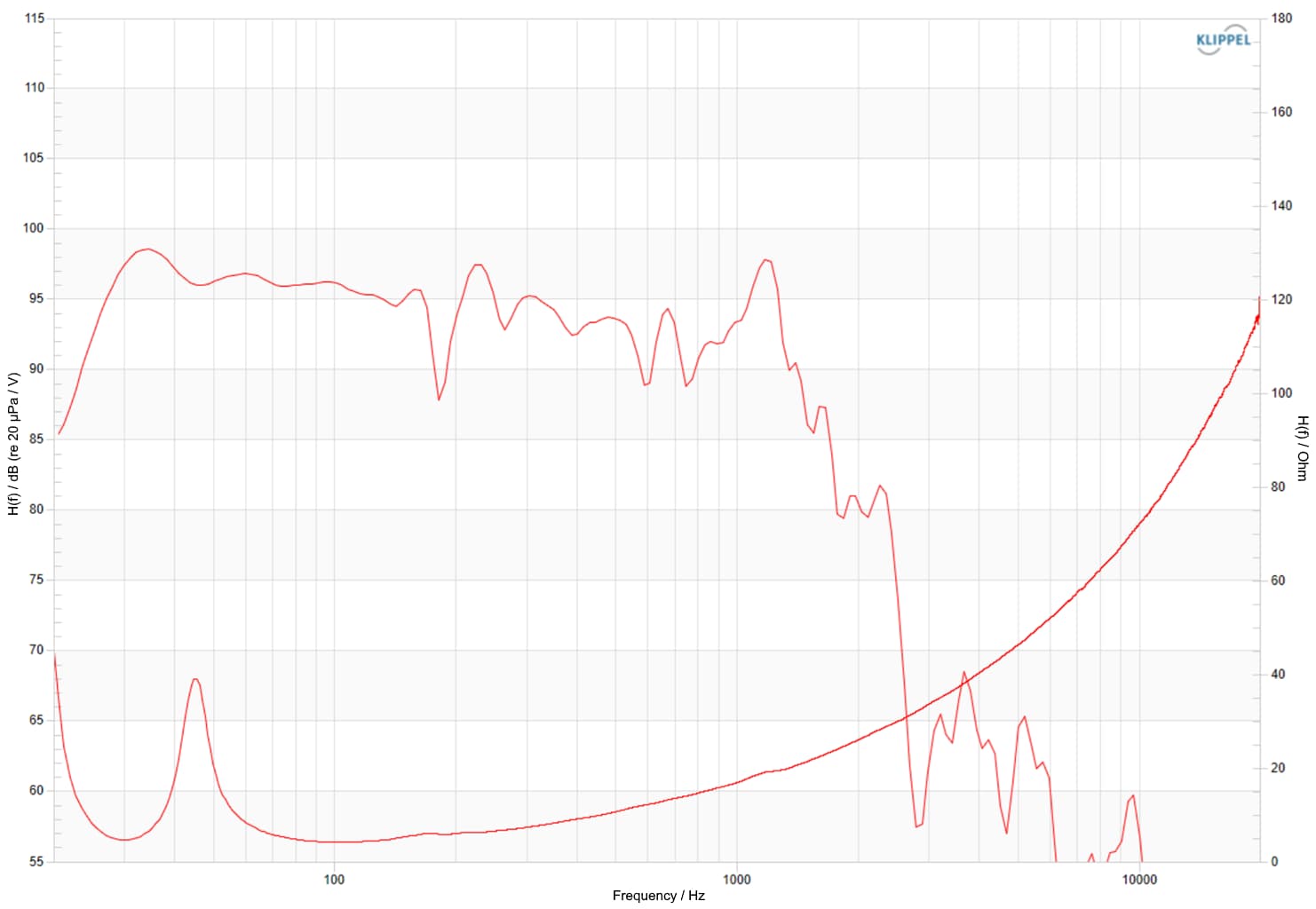

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response109 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
109 plotted pointsMedium confidence212 selected pixels of 324
T/S Parameters
Valid
Fs27Hz
Qts0.30
Qes0.31
Qms10.9
Vas344.5L
Re3.2Ω
Le2.05mH
BL35.2Tm
Sd2239cm²
Mms717g
Xmax18.8mm
SPL95dB
Power2500W
Impedance4Ω
F Low20Hz
F High200Hz
Voice Coil152mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 22 Sept 2026· 4Ω
Source: inc VAT · 20%
£899.00
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight22.0kg
Diameter627.0mm
Overall Depth280.0mm
Cutout Diameter571.0mm
Bolt Circle Diameter606.0mm
