BMS 5N155
BMS 5N155 is a 5" 16 ohm LF driver rated at 130W RMS. The validated T/S data includes Fs 101Hz, Qts 0.44, Vas 2.6L, Xmax 5mm, sensitivity 89.4dB, plus 43cm³ Vd and 205 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
16Ω
RMS Power
130W
Sensitivity
89.4dB
91.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
205
Vented alignment
Vd
43cm³
T/S Parameters
Valid
Fs101Hz
Qts0.44
Qes0.49
Qms4.2
Vas2.6L
Re11.7Ω
Le0.51mH
BL12.0Tm
Sd85cm²
Mms10g
Xmax5.0mm
SPL89dB
Power130W
Impedance16Ω
F Low80Hz
F High4000Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

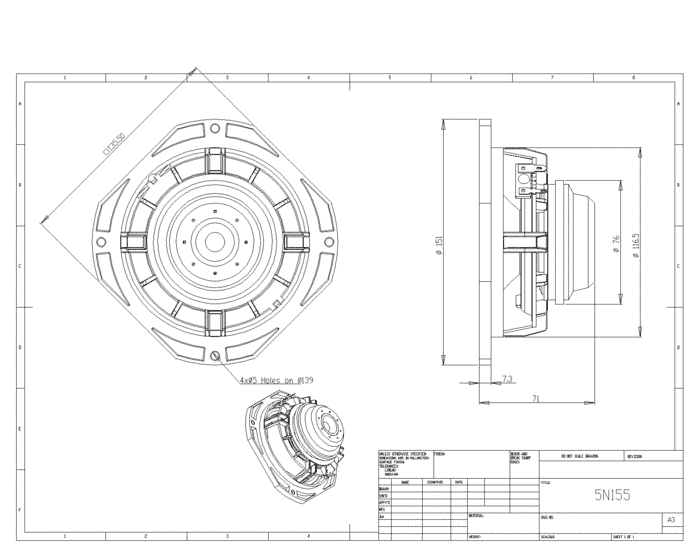

Dimensions & Physical
Weight0.8kg
Diameter135.0mm
Overall Depth71.0mm
Cutout Diameter117.0mm
Bolt Circle Diameter139.0mm
