BMS 5531ND 8Ω
Compression DriverMedia
Auto-advancing
Overview
Compression Driver
BMS

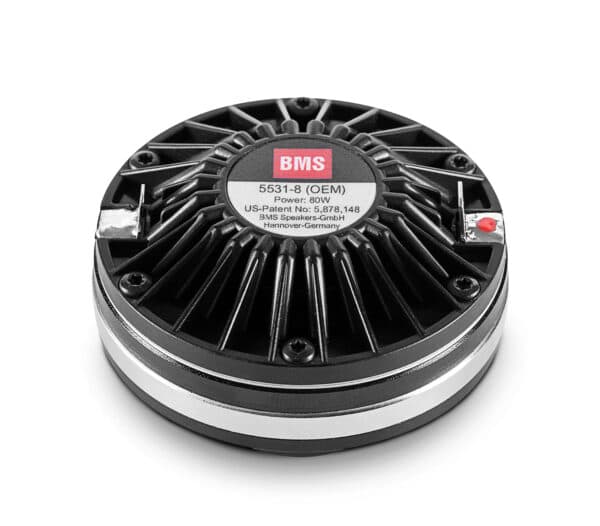

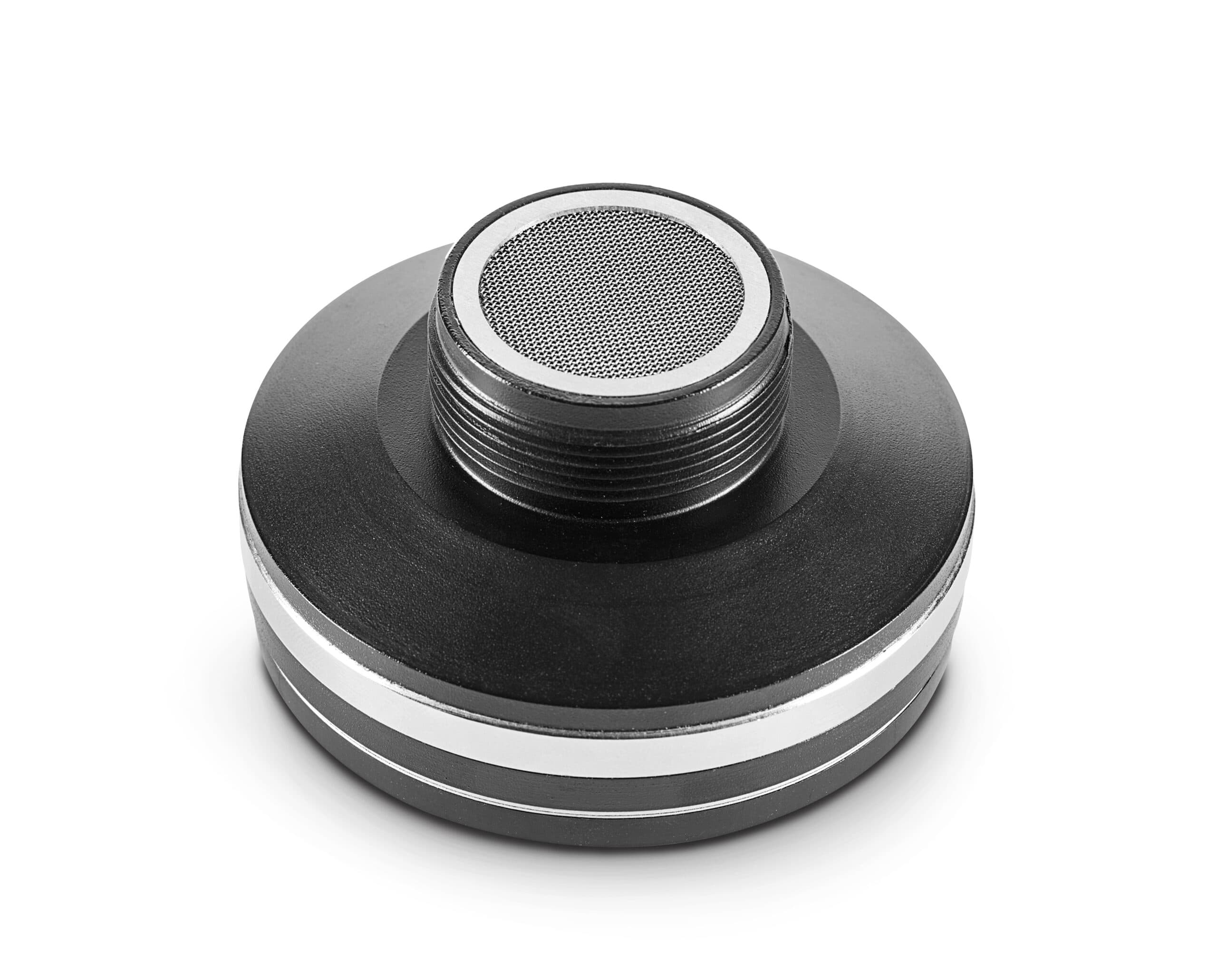

BMS 5531ND
BMS 5531ND is a 1" 8 ohm compression driver rated at 80W RMS. The source-backed specifications include sensitivity 113dB, range from 500Hz, to 20000Hz, throat 25.4mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Size
1"
Impedance
8Ω
RMS Power
80W
Sensitivity
113.0dB
Technical Specifications
SPL113dB
Power80W
Impedance8Ω
F Low500Hz
F High20000Hz
Xover1000Hz
Throat25mm
Voice Coil44mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Dimensions & Physical
Weight0.7kg
Diameter72.0mm
Overall Depth48.0mm
Additional Manufacturer Specs
4. Peak Power450 W
1. Throat Diameter1″ (25.4 mm)
8. Max. Spl (Peak)139 dB at 450 W
9. Frequency Range500 – 20000 Hz
12. Magnet MaterialNeodymium
7. Max. Spl (Cont.)132 dB at 80 W
15. Voice Coil FormerKapton
2. Nominal Impendance8 or 16 Ohm
16. Diaphragm MaterialPolyester
11. Voice Coil Diameter1.75″ (44.4 mm)
14. Voice Coil MaterialCopper Clad Aluminum
3. Power Capacity (Aes)80 W
13. Flux Density (Tesla)2.2
10. Recommended Crossover1000 Hz
6. Plane Wave Tube, 1 W / 1 M117 dB
5. Cd Horn 90° X 75° 1 W / 1 M113 dB
