2-inch compression driver · 90 mm voice coil · 150 W
BMS 4596ND 8Ω
200–9000 Hz
No current price
- SPL
- 123dB
- Pe
- 150W
- Xover
- 300Hz
- Throat
- 51mm
- VC
- 90mm

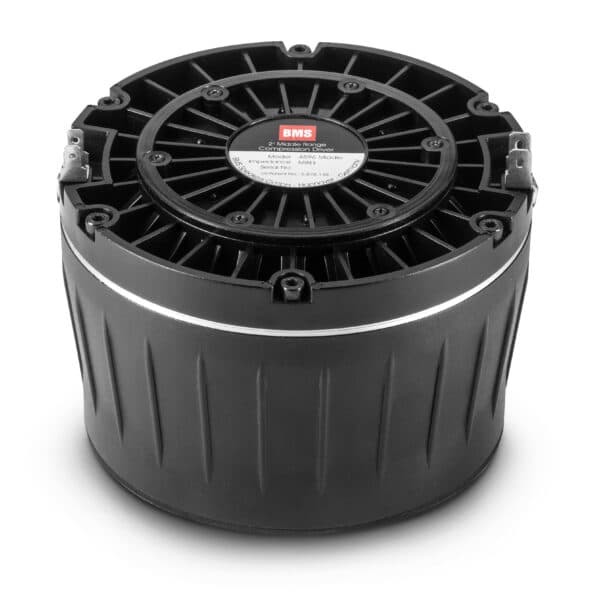

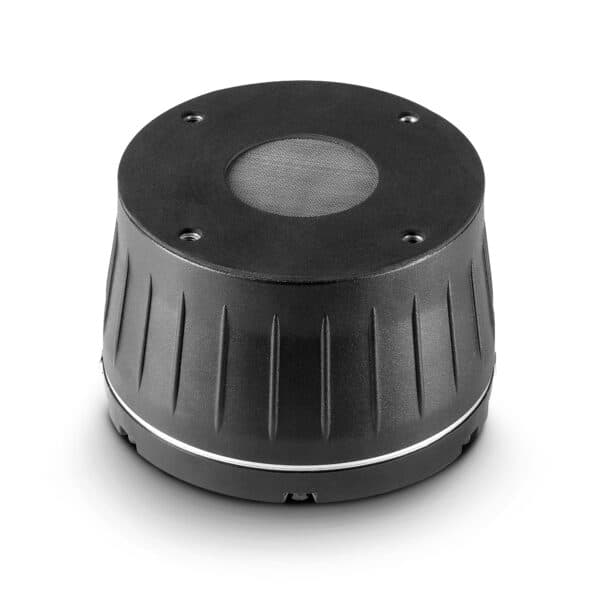

BMS 4596ND is a 2-inch 8 ohm compression driver rated at 150 W RMS. The source-backed specifications include sensitivity 123 dB, range from 200 Hz, to 9000 Hz, throat 50.8 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 90mm
Power and response
- Sensitivity
- 123dB
- Power
- 150W
- Impedance
- 8Ω
- Range
- 200–9000Hz
- Crossover
- 300Hz
- Throat
- 51mm
Size and mounting
- Diameter
- 133mm
- Depth
- 92mm
- Weight
- 1.9kg
Other published values
- Power Peak
- 1500
Everything else BMS lists
HF
- SPL
- 123dB
- Power
- 150W
- Impedance
- 8Ω
- Power Peak
- 1500
- Sensitivity
- 123dB
- Low limit
- 200Hz
- High limit
- 9000Hz
- Throat
- 51mm
- Manufacturer sensitivity
- 123dB
- Voice coil
- 90mm
- Crossover
- 300Hz
- 6. 1 w / 1 m
- 123 dB on 40°x20° waveguide
- 4. peak power
- 1500 W
- 12. efficiency
- 35 %
- 1. throat diameter
- 2″ (50.8 mm)
- 7. frequency range
- 200 – 9000 Hz
- 10. magnet material
- Neodymium
- 5. max. spl (cont.)
- 136 dB at 150 W
- 14. voice coil former
- Kapton
- 2. nominal impendance
- 8 or 16 Ohm
- 15. diaphragm material
- Polyester
- 9. voice coil diameter
- 3.5″ (90 mm)
- 13. voice coil material
- Copper
- 3. power capacity (aes)
- 150 W
- 11. flux density (tesla)
- 1.95
- 8. recommended crossover
- 300 Hz
