BMS 4594ND-MID 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /BMS
  4. /4594ND-MID

Media

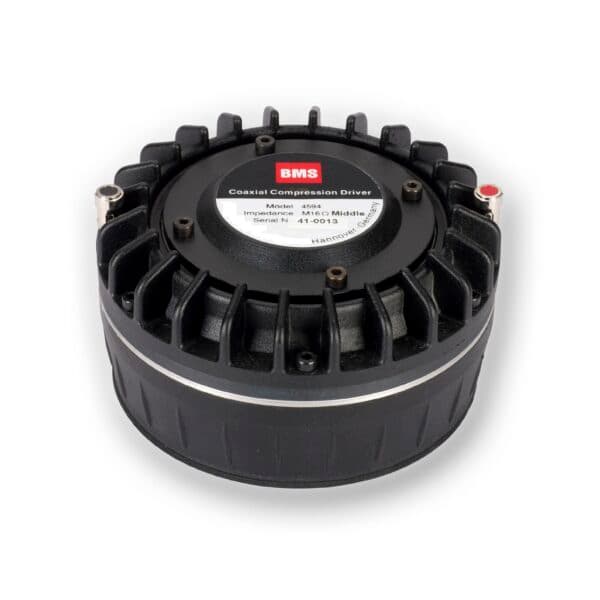

BMS 4594ND-MID 1.4 inch 16 ohm loudspeaker driver view 1

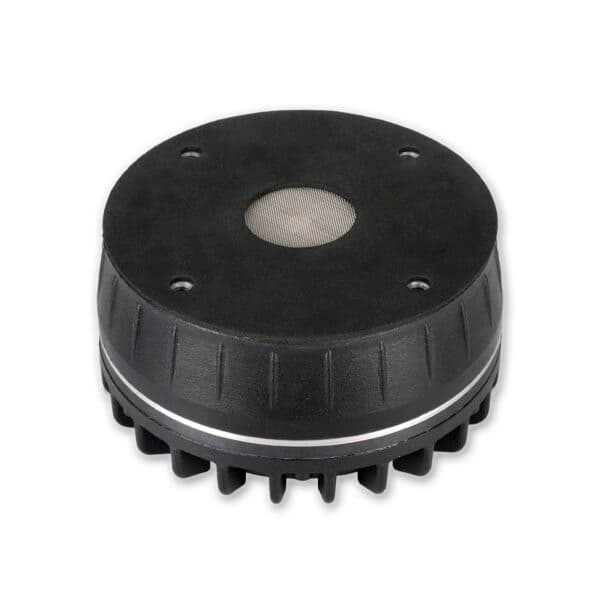

BMS 4594ND-MID 1.4 inch 16 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression Driver
BMS

BMS 4594ND-MID

BMS 4594ND-MID is a 1.5" 16 ohm compression driver rated at 150W RMS. The source-backed specifications include sensitivity 118dB, range from 200Hz, to 7000Hz, throat 36mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
16Ω
RMS Power
150W
Sensitivity
118.0dB

Technical Specifications

Canonical
SPL118dB
Power150W
Impedance16Ω
F Low200Hz
F High7000Hz
Xover300Hz
Throat36mm
Voice Coil90mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight2.0kg
Diameter133.0mm
Overall Depth74.0mm

Additional Manufacturer Specs

4. Peak Power1000 W peak above 500 Hz
11. Efficiency35 % (300 – 5000 Hz)
3. Power Capacity150 W AES above 400 Hz
1. Throat Diameter1.4″ (36 mm)
6. Frequency Range200 – 7000 Hz
9. Magnet MaterialNeodymium
2. Nominal Impedance8 or 16 Ohm
13. Voice Coil FormerKapton TM
14. Diaphragm MaterialPolyester
8. Voice Coil Diameter3.5″ (90 mm)
12. Voice Coil MaterialCopper Clad Aluminum
10. Flux Density (Tesla)1.95
5. Sensitivity 1 W / 1 M118 dB on 40° x 20° Horn
7. Recommended Crossover300 Hz
