BMS 4592ND-MID 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /BMS
  4. /4592ND-MID

Media

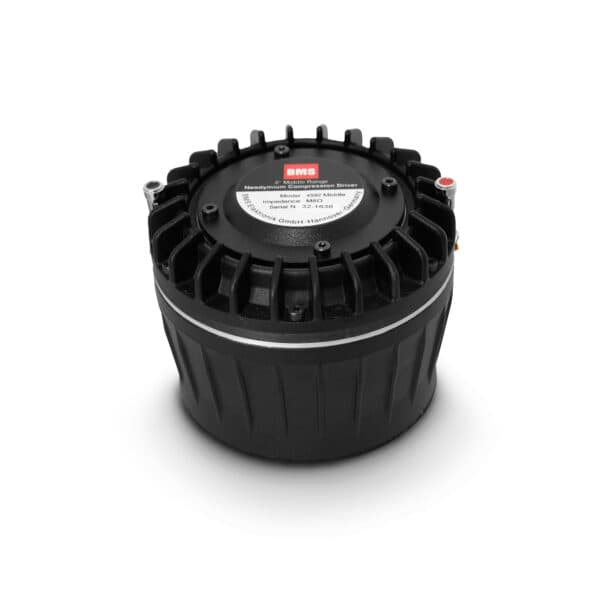

BMS 4592ND-MID 2 inch 8 ohm loudspeaker driver view 1
BMS 4592ND-MID 2 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression Driver
BMS

BMS 4592ND-MID

BMS 4592ND-MID is a 2" 8 ohm compression driver rated at 150W RMS. The source-backed specifications include sensitivity 118dB, range from 200Hz, to 9000Hz, throat 50.8mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
2"
Impedance
8Ω
RMS Power
150W
Sensitivity
118.0dB

Technical Specifications

Canonical
SPL118dB
Power150W
Impedance8Ω
F Low200Hz
F High9000Hz
Xover300Hz
Throat51mm
Voice Coil90mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight2.4kg
Diameter133.0mm
Overall Depth106.0mm

Additional Manufacturer Specs

6. 1 W / 1 M118 dB
4. Peak Power1000 W peak above 500 Hz
13. Efficiency35 % (300 – 5000 Hz)
1. Throat Diameter2″ (50.8 mm)
7. Frequency Range200 – 9000 Hz
11. Magnet MaterialNeodymium
5. Max. Spl (Cont.)136 dB at 150 W
15. Voice Coil FormerKapton TM
2. Nominal Impendance8 or 16 Ohm
16. Diaphragm MaterialPolyester
10. Voice Coil Diameter3.5″ (90 mm)
14. Voice Coil MaterialCopper Clad Aluminum
3. Power Capacity (Aes)150 W AES above 400 Hz
12. Flux Density (Tesla)1.95
8. Recommended Crossover300 Hz
9. Min. Impedance Modulus8.3 Ohm at 5 kHz
