BMS 4552ND 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /BMS
  4. /4552ND

Media

BMS 4552ND 1 inch 8 ohm loudspeaker driver view 1

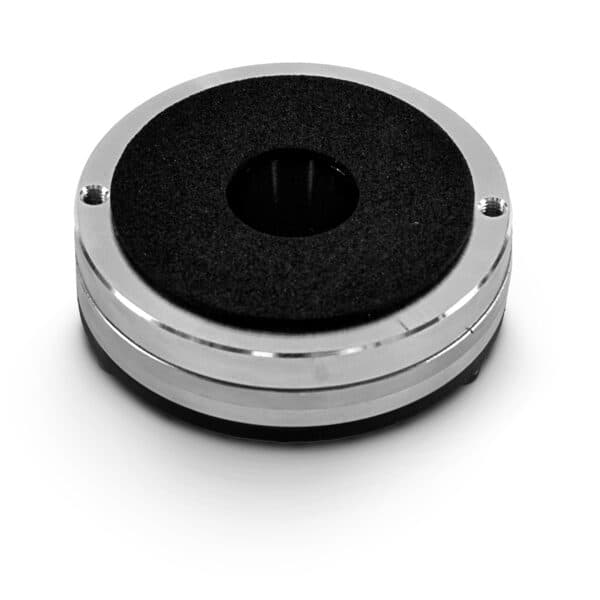

BMS 4552ND 1 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression Driver
BMS

BMS 4552ND

BMS 4552ND is a 1" 8 ohm compression driver rated at 80W RMS. The source-backed specifications include sensitivity 113dB, range from 500Hz, to 20000Hz, throat 25.4mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
80W
Sensitivity
113.0dB

Technical Specifications

Canonical
SPL113dB
Power80W
Impedance8Ω
F Low500Hz
F High20000Hz
Xover1000Hz
Throat25mm
Voice Coil44mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight0.8kg
Diameter85.0mm
Overall Depth36.0mm

Additional Manufacturer Specs

4. Peak Power450 W
1. Throat Diameter1″ (25.4 mm)
8. Frequency Range500 – 20000 Hz
11. Magnet MaterialNeodymium
7. Max. Spl (Cont.)132 dB at 80 W
14. Voice Coil FormerKapton TM
2. Nominal Impendance8 or 16 Ohm
15. Diaphragm MaterialPolyester
10. Voice Coil Diameter1.75″ (44.4 mm)
13. Voice Coil MaterialCopper Clad Aluminum
3. Power Capacity (Aes)80 W
12. Flux Density (Tesla)2.2
9. Recommended Crossover1000 Hz
6. Plane Wave Tube, 1 W / 1 M117 dB
5. Cd Horn 90° X 75° 1 W / 1 M113 dB
