BMS 4544 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /BMS
  4. /4544

Media

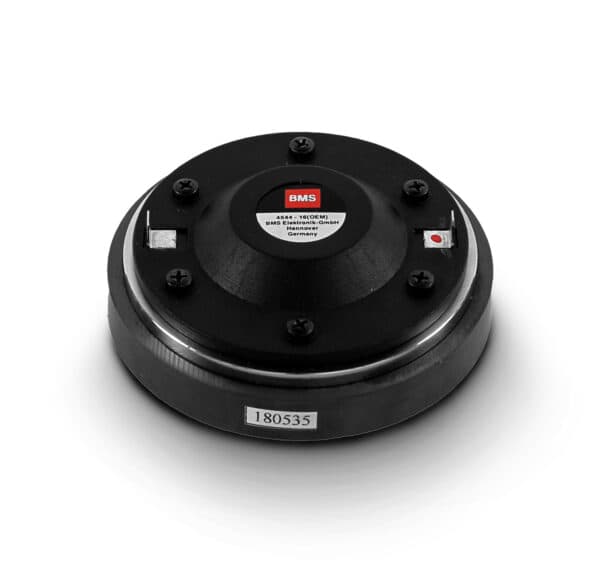

BMS 4544 1 inch 16 ohm loudspeaker driver view 1
BMS 4544 1 inch 16 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression Driver
BMS

BMS 4544

BMS 4544 is a 1" 16 ohm compression driver rated at 80W RMS. The source-backed specifications include sensitivity 113dB, range from 500Hz, to 20000Hz, throat 25.4mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
16Ω
RMS Power
80W
Sensitivity
113.0dB

Technical Specifications

Canonical
SPL113dB
Power80W
Impedance16Ω
F Low500Hz
F High20000Hz
Xover1300Hz
Throat25mm
Voice Coil44mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight1.5kg
Diameter110.0mm
Overall Depth47.0mm

Additional Manufacturer Specs

4. Peak Power400 W
1. Throat Diameter1″ (25.4 mm)
8. Frequency Range500 – 20000 Hz
11. Magnet MaterialFerrite
14. Voice Coil FormerKapton TM
2. Nominal Impendance8 or 16 Ohm
15. Diaphragm MaterialPolyester
7. Maximal Spl (Cont.)132 dB at 80 W
10. Voice Coil Diameter1.75″ (44.4 mm)
13. Voice Coil MaterialCopper Clad Aluminum
3. Power Capacity (Aes)80 W
12. Flux Density (Tesla)1.85
6. Plane Wave Tube, 1 Mw117 dB
9. Recommended Crossover1300 Hz
5. Cd Horn 90° X 75°, 1 W / 1 M113 dB
