1-inch compression driver · 38 mm voice coil · 60 W
BMS 4540ND 8Ω
1200–30000 Hz
No current price
- SPL
- 114dB
- Pe
- 60W
- Xover
- 1900Hz
- Throat
- 25mm
- VC
- 38mm

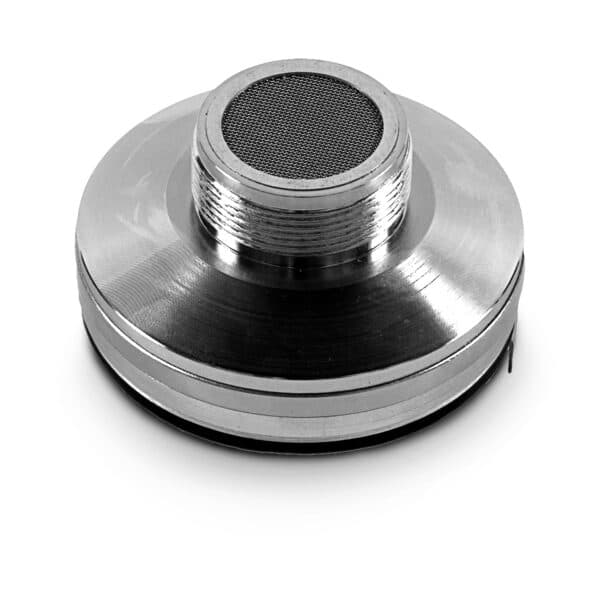

BMS 4540ND is a 1-inch 8 ohm compression driver rated at 60 W RMS. The source-backed specifications include sensitivity 114 dB, range from 1200 Hz, to 30000 Hz, throat 25.4 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 38mm
Power and response
- Sensitivity
- 114dB
- Power
- 60W
- Impedance
- 8Ω
- Range
- 1200–30000Hz
- Crossover
- 1900Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 72mm
- Depth
- 45mm
- Weight
- 0.53kg
Other published values
- Power Peak
- 300
Everything else BMS lists
HF
- SPL
- 114dB
- Power
- 60W
- Impedance
- 8Ω
- Power Peak
- 300
- Sensitivity
- 114dB
- Low limit
- 1200Hz
- High limit
- 30000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 114dB
- Voice coil
- 38mm
- Crossover
- 1900Hz
- 4. peak power
- 300 W
- 1. throat diameter
- 1″ (25.4 mm)
- 8. frequency range
- 1200 – 30000 Hz
- 11. magnet material
- Neodymium
- 7. max. spl (cont.)
- 132 dB at 60 W
- 14. voice coil former
- Kapton TM
- 2. nominal impendance
- 8 or 16 Ohm
- 15. diaphragm material
- Polyester
- 10. voice coil diameter
- 1.5″ (38 mm)
- 13. voice coil material
- Copper Clad Aluminum
- 3. power capacity (aes)
- 60 W
- 12. flux density (tesla)
- 2.2
- 6. plane wave tube, 1 mw
- 118 dB
- 9. recommended crossover
- 1900 Hz
- 5. cd horn 90° x 75°, 1 w / 1 m
- 114 dB
