2-inch compression driver · 75 mm voice coil · 110 W

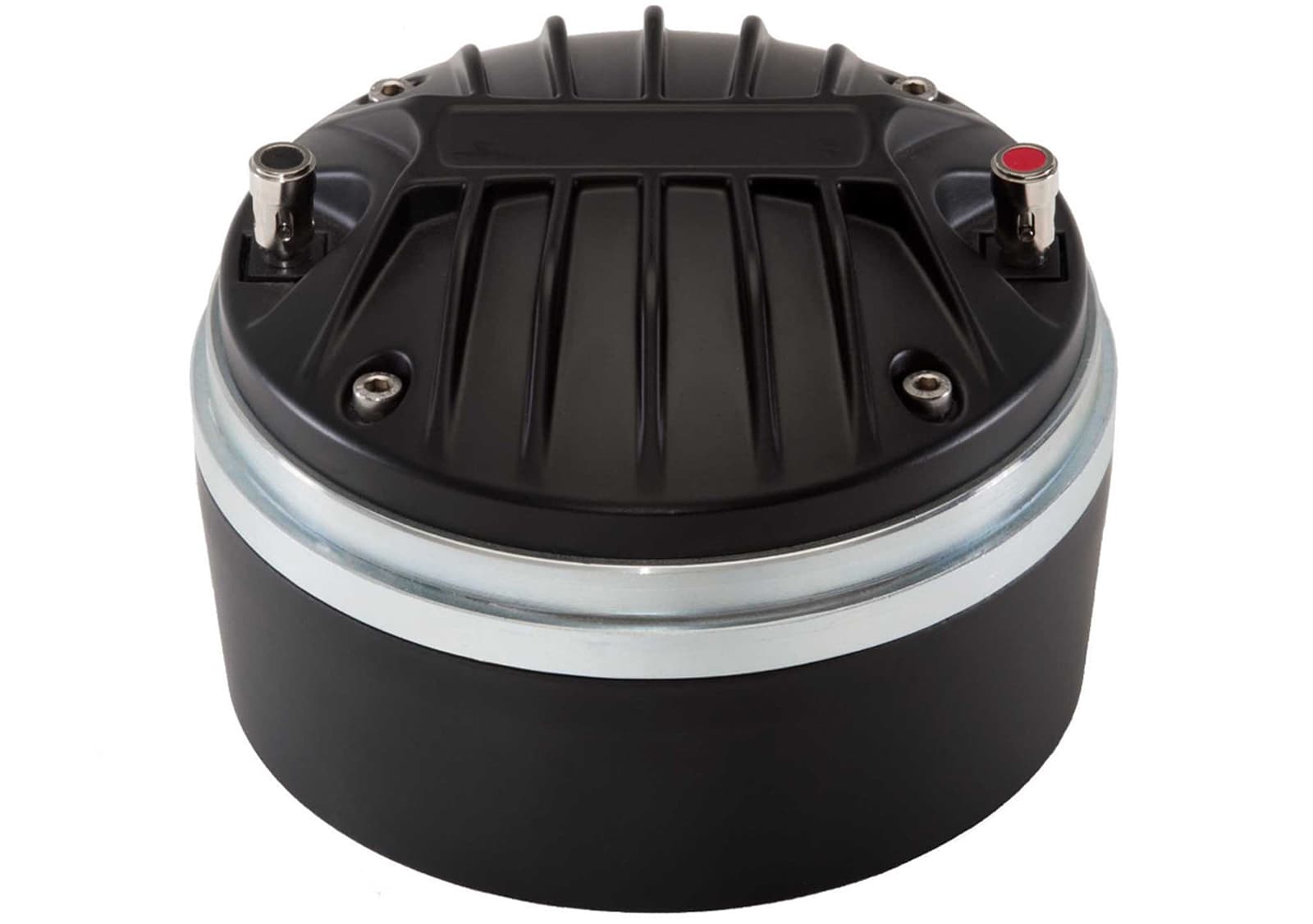

B&C DE985TN 8Ω
8 Ω · 500–18000 Hz
No current price
- SPL
- 109dB
- Pe
- 110W
- Xover
- 800Hz
- Throat
- 50mm
- VC
- 75mm

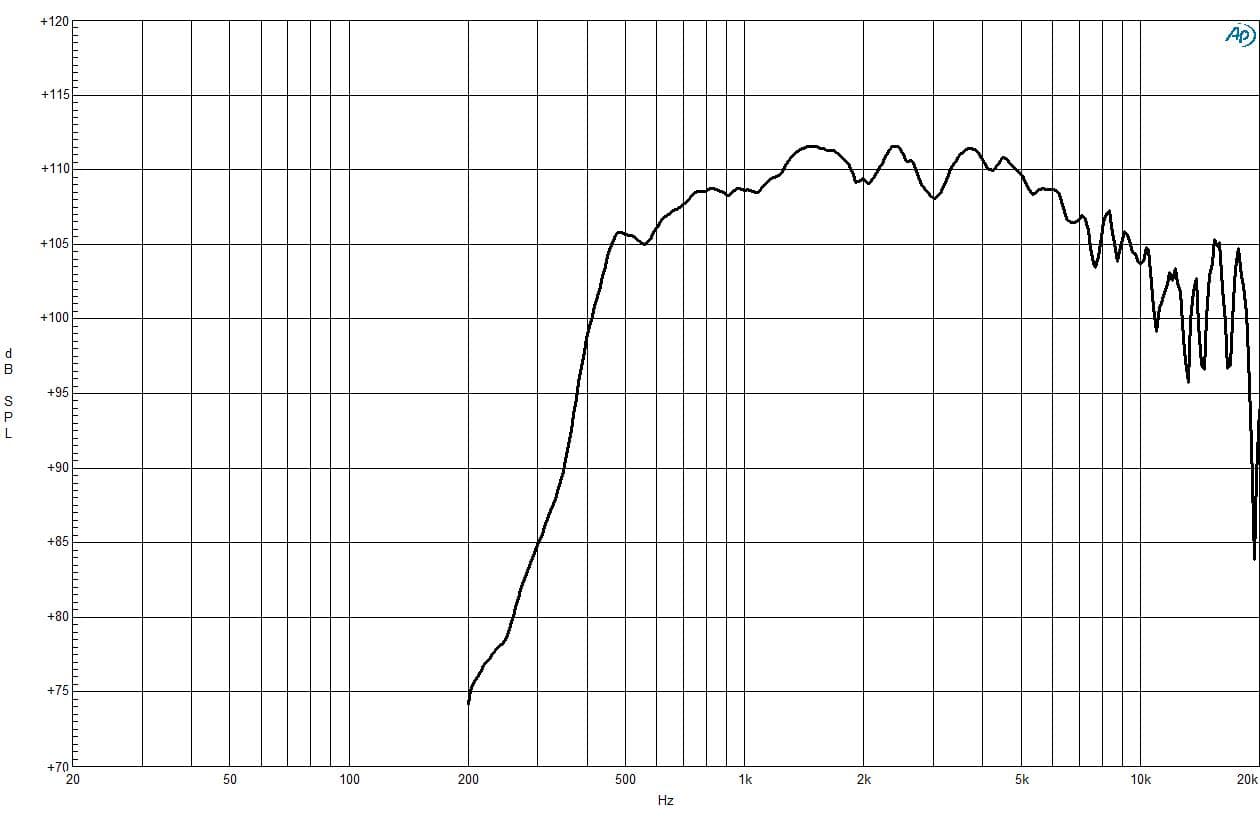

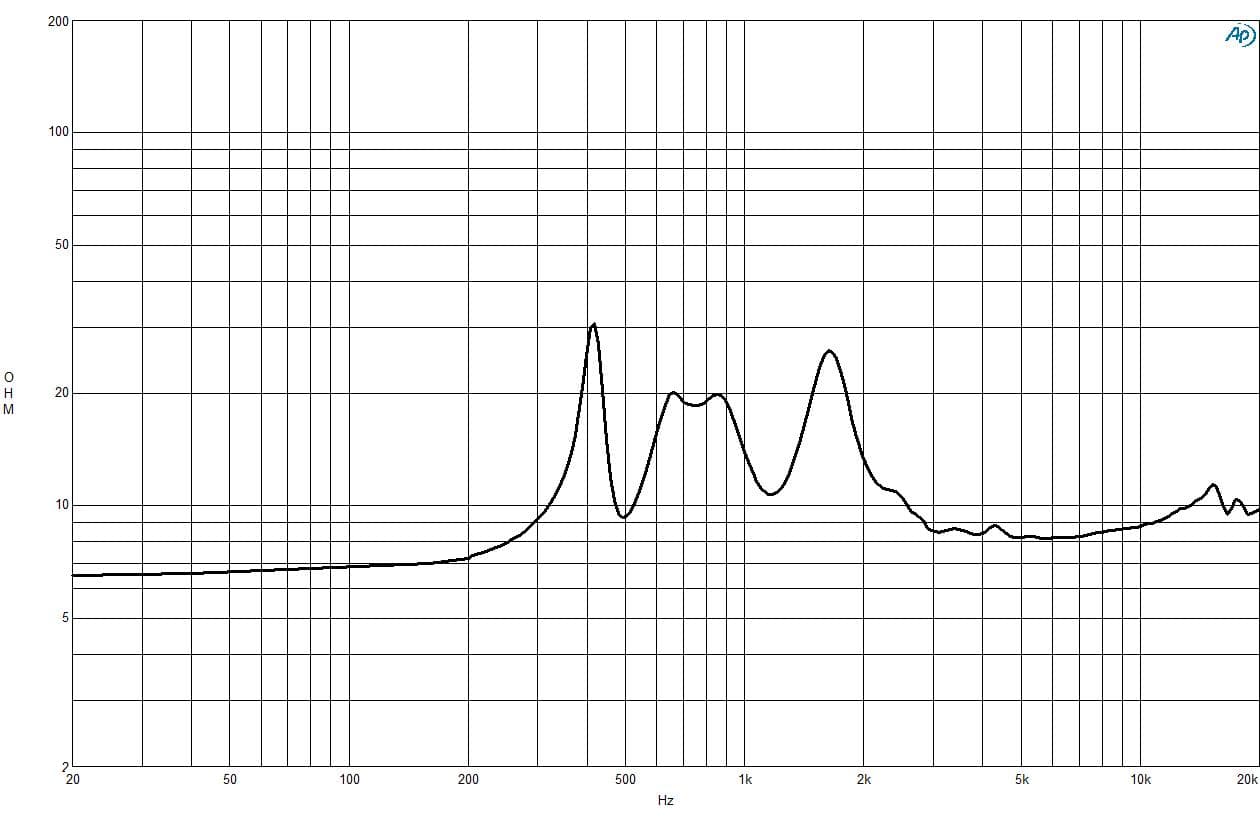

Published graphs
B&C DE985TN is a 2-inch 8 ohm compression driver rated at 110 W RMS. The source-backed specifications include sensitivity 108.5 dB, range from 500 Hz, to 18000 Hz, throat 50 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.10mH
Motor and cone
- Voice coil
- 75mm
- Flux density
- 2.05T
Power and response
- Sensitivity
- 108.5dB
- Power
- 110W
- Nominal power
- 110W
- Impedance
- 8Ω
- Min. impedance
- 8.1Ω
- Range
- 500–18000Hz
- Crossover
- 800Hz
- Throat
- 50mm
Size and mounting
- Diameter
- 131mm
- Depth
- 87mm
- Weight
- 2.6kg
Everything else B&C lists
HF
- Le
- 0.10mH
- SPL
- 108.5dB
- Power
- 110W
- Impedance
- 8Ω
- Flux density
- 2.05T
- Sensitivity
- 108.5dB
- Low limit
- 500Hz
- Nominal power
- 110W
- High limit
- 18000Hz
- Throat
- 50mm
- Manufacturer sensitivity
- 108.5dB
- Min. impedance
- 8.1Ω
- Voice coil
- 75mm
- Crossover
- 800Hz
- Weight
- 2.6kg
- Diameter
- 131mm
- Depth
- 87mm
- Depth
- 87 mm (3.44 in)
- Inductance
- 0.1 mH
- Net weight
- 2.56 kg (5.64 lb)
- Sensitivity
- 108.5 dB
- Flux density
- 2.05 T
- Shipping box
- 135x135x93 mm (5.31x5.31x3.66 in)
- Shipping units
- 1 pcs
- Frequency range
- 0.5 kHz - 18 kHz
- Shipping weight
- 2.63 kg (5.8 lb)
- Throat diameter
- 50 mm (2 in)
- Overall diameter
- 131 mm (5.2 in)
- Winding material
- Aluminium
- Minimum impedance
- 8.1 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 75 mm (3 in)
- Recommended crossover
- 0.8 kHz
- Nominal power handling
- 110 W
- Continuous power handling
- 220 W
