2-inch compression driver · 75 mm voice coil · 110 W

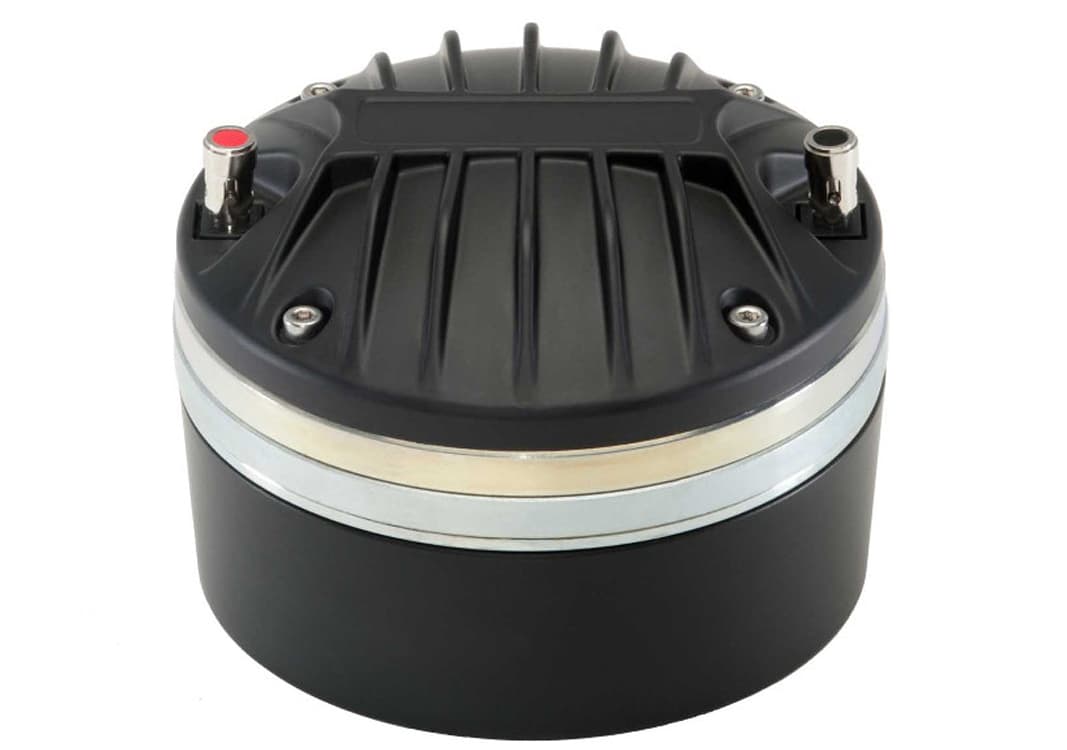

B&C DE885TN 16Ω
16 Ω · 800–18000 Hz
No current price
- SPL
- 110dB
- Pe
- 110W
- Xover
- 1000Hz
- Throat
- 50mm
- VC
- 75mm

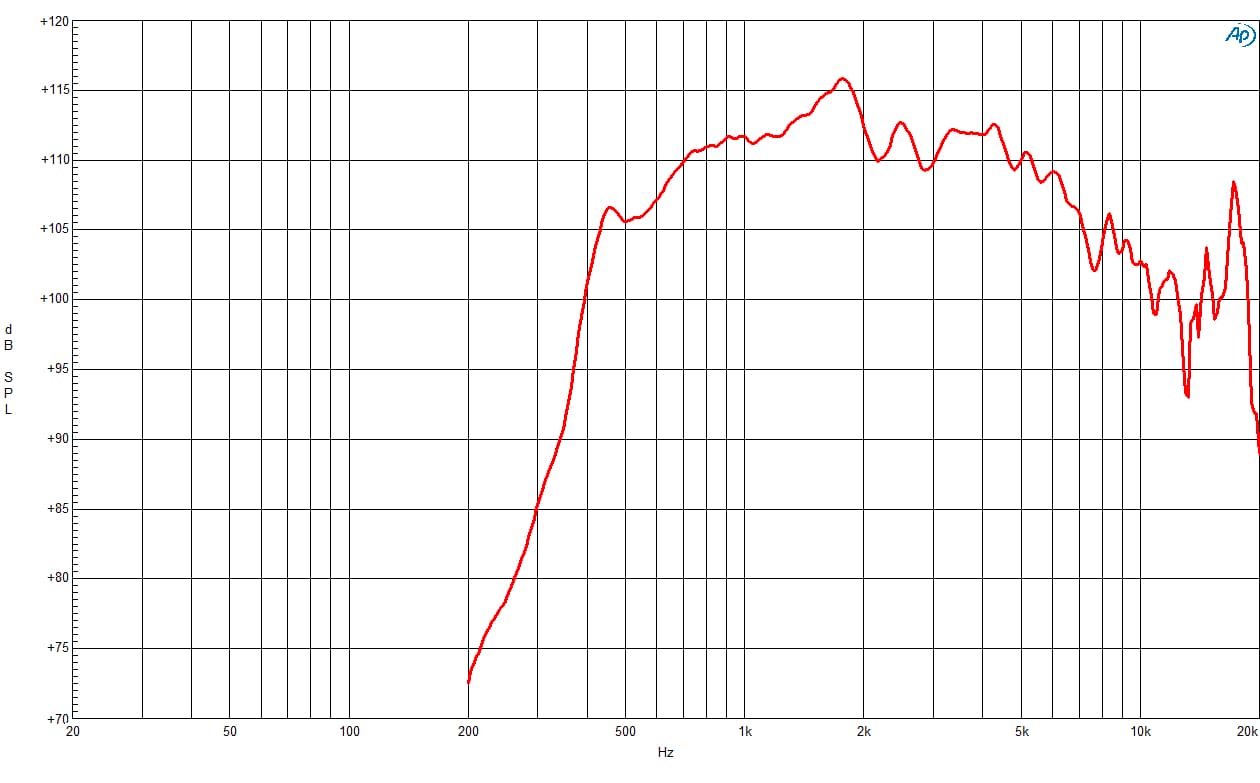

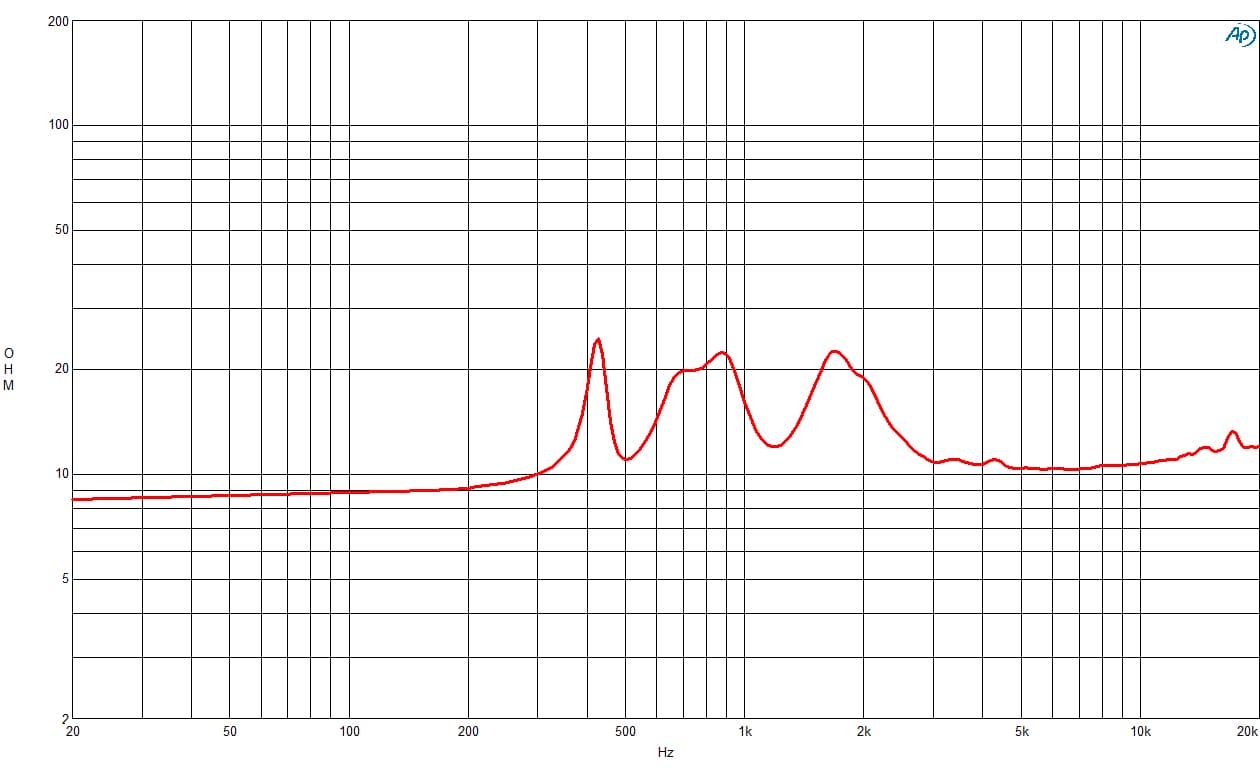

Published graphs
B&C DE885TN is a 2-inch 16 ohm compression driver rated at 110 W RMS. The source-backed specifications include sensitivity 109.5 dB, range from 800 Hz, to 18000 Hz, throat 50 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.10mH
Motor and cone
- Voice coil
- 75mm
- Flux density
- 1.85T
Power and response
- Sensitivity
- 109.5dB
- Power
- 110W
- Nominal power
- 110W
- Impedance
- 16Ω
- Min. impedance
- 10.4Ω
- Range
- 800–18000Hz
- Crossover
- 1000Hz
- Throat
- 50mm
Size and mounting
- Diameter
- 124mm
- Depth
- 88mm
- Weight
- 2.4kg
Everything else B&C lists
HF
- Le
- 0.10mH
- SPL
- 109.5dB
- Power
- 110W
- Impedance
- 16Ω
- Flux density
- 1.85T
- Sensitivity
- 109.5dB
- Low limit
- 800Hz
- Nominal power
- 110W
- High limit
- 18000Hz
- Throat
- 50mm
- Manufacturer sensitivity
- 109.5dB
- Min. impedance
- 10.4Ω
- Voice coil
- 75mm
- Crossover
- 1000Hz
- Weight
- 2.4kg
- Diameter
- 124mm
- Depth
- 88mm
- Depth
- 88 mm (3.46 in)
- Inductance
- 0.1 mH
- Net weight
- 2.4 kg (5.29 lb)
- Sensitivity
- 109.5 dB
- Flux density
- 1.85 T
- Shipping box
- 135x135x93 mm (5.31x5.31x3.66 in)
- Shipping units
- 1 pcs
- Frequency range
- 0.8 kHz - 18 kHz
- Shipping weight
- 2.47 kg (5.45 lb)
- Throat diameter
- 50 mm (2 in)
- Overall diameter
- 124 mm (4.88 in)
- Winding material
- Aluminium
- Minimum impedance
- 10.4 Ω
- Nominal impedance
- 16 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 75 mm (3 in)
- Recommended crossover
- 1 kHz
- Nominal power handling
- 110 W
- Continuous power handling
- 220 W
