1-inch compression driver · 44 mm voice coil · 50 W
B&C DE500 8Ω
8 Ω · 1000–18000 Hz
£153.04
SteadyBlue Aran · 1 in stock · All 5 offers
- SPL
- 107dB
- Pe
- 50W
- Xover
- 1500Hz
- Throat
- 25mm
- VC
- 44mm

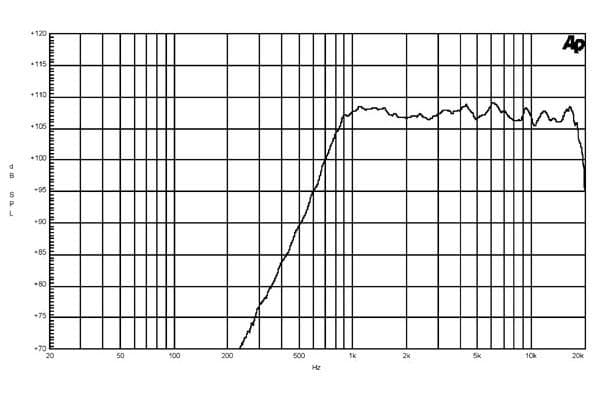

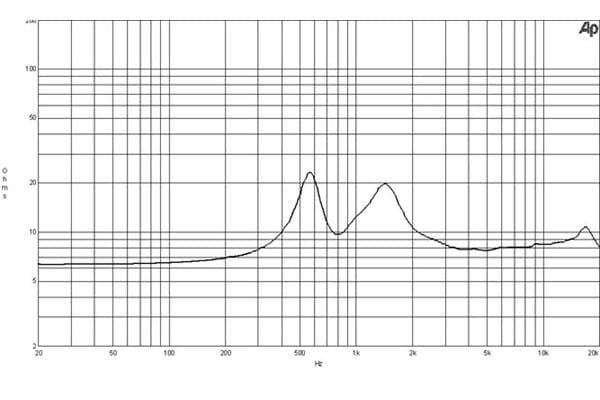

Published graphs
B&C DE500 is a 1-inch 8 ohm compression driver rated at 50 W RMS. The source-backed specifications include sensitivity 107 dB, range from 1000 Hz, to 18000 Hz, throat 25 mm. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £153.04.
Source-backed specifications
Thiele/Small
- Le
- 0.11mH
Motor and cone
- Voice coil
- 44mm
- Flux density
- 1.90T
Power and response
- Sensitivity
- 107dB
- Power
- 50W
- Nominal power
- 50W
- Impedance
- 8Ω
- Min. impedance
- 7.6Ω
- Range
- 1000–18000Hz
- Crossover
- 1500Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 102mm
- Depth
- 51mm
- Weight
- 1.4kg
Everything else B&C lists
HF
- Le
- 0.11mH
- SPL
- 107dB
- Power
- 50W
- Impedance
- 8Ω
- Flux density
- 1.90T
- Sensitivity
- 107dB
- Low limit
- 1000Hz
- Nominal power
- 50W
- High limit
- 18000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 107dB
- Min. impedance
- 7.6Ω
- Voice coil
- 44mm
- Crossover
- 1500Hz
- Weight
- 1.4kg
- Diameter
- 102mm
- Depth
- 51mm
- Depth
- 51 mm (2 in)
- Inductance
- 0.11 mH
- Net weight
- 1.4 kg (3.1 lb)
- Sensitivity
- 107 dB
- Flux density
- 1.9 T
- Shipping box
- 105x105x65 mm (4.13x4.13x2.56 in)
- Shipping units
- 1 pcs
- Frequency range
- 1 kHz - 18 kHz
- Shipping weight
- 1.43 kg (3.14 lb)
- Throat diameter
- 25 mm (1 in)
- Overall diameter
- 102 mm (4 in)
- Winding material
- Aluminium
- Minimum impedance
- 7.6 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 44 mm (1.7 in)
- Recommended crossover
- 1.5 kHz
- Nominal power handling
- 50 W
- Continuous power handling
- 100 W
- Available in button-on version
- MMD5008
- Thomann5.0 out of 53 ratings · Checked 2 Oct 2026Read reviews on Thomann
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran | £153.04, the lowest price | 1 in stock | Visit shop at Blue Aran | |
JP Leisure Not currently listed · Last seen 7 Aug 2026 | £144.38 | In stock | Visit shop at JP Leisure | |
JP Leisure Not currently listed · Last seen 7 Aug 2026 | £144.38 | In stock | Visit shop at JP Leisure | |
Blue Aran 3-5 months | £153.04 | Usually available in 3-5 months | Visit shop at Blue Aran | |
Thomann | £155.00 | 1.3% above the lowest price | In stock | Visit shop at Thomann |
Best price over time
Tracked since 1 Apr
Recent changes
- 23 JunJP Leisure£142.82 → £144.38Up 1.1% from £142.82
- 23 JunJP Leisure£144.35 → £144.38Up <0.1% from £144.35
- 23 JunBlue Aran£153.05 → £153.04Down <0.1% from £153.05
