10-inch passive radiator · PR270WA series

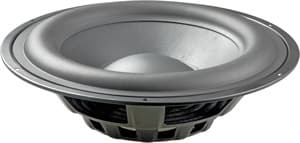

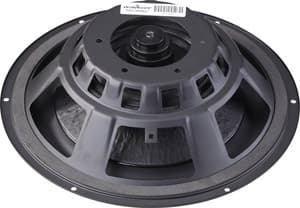

Wavecor PR270WA01
£136.29
RumoH · All 2 offers
Simulator support pending: 00 Simulator import needs complete passive-radiator parameters.
- Fs
- 26Hz
- Sd
- 312cm²
- Xmax
- –
- Mms
- 112g
- Vas
- 46L
- Qms
- 24
Wavecor PR270WA01 is a 10-inch passive radiator. The source-backed mechanical data includes Fs 26 Hz, Vas 46 L. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £136.29.
Partial source evidence
No automated T/S validation result is published for this record yet.
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Thiele/Small
- Fs
- 26Hz
- Qms
- 24
- Vas
- 46L
Motor and cone
- Sd
- 312cm²
- Mms
- 112g
Size and mounting
- Diameter
- 266.7mm
Other published values
- Cms
- 0.33mm/N
- Xmech
- 20
Everything else Wavecor lists
LF · Primary · 10″
- Fs
- 26Hz
- Sd
- 312cm²
- Cms
- 0.33mm/N
- Mms
- 112g
- Qms
- 24
- Vas
- 46L
- Xmech
- 20
- Diameter
- 266.7mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
RumoH | £136.29, the lowest price | Stock not listed | Visit shop at RumoH | |
Lautsprechershop | £136.72 | 0.3% above the lowest price | Stock not listed | Visit shop at Lautsprechershop |
Best price over time
Tracked since 28 Sep
