8-inch passive radiator · PR223BD series

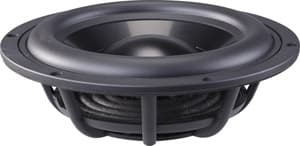

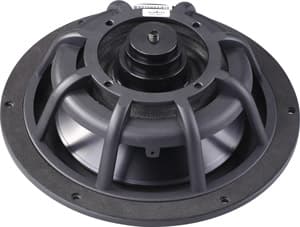

Wavecor PR223BD02
£174.01
RumoH · All 2 offers
Simulator support pending: 00 Simulator import needs complete passive-radiator parameters.
- Fs
- 15Hz
- Sd
- 206cm²
- Xmax
- –
- Mms
- 162g
- Vas
- 42L
- Qms
- 19
Wavecor PR223BD02 is an 8-inch passive radiator. The source-backed mechanical data includes Fs 15 Hz, Vas 41.6 L. bits tracks UK vendor pricing, price movement, and datasheet links, with a current best price of £174.01.
Partial source evidence
No automated T/S validation result is published for this record yet.
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Thiele/Small
- Fs
- 15Hz
- Qms
- 19
- Vas
- 41.6L
Motor and cone
- Sd
- 206cm²
- Mms
- 162g
Size and mounting
- Diameter
- 222.3mm
Other published values
- Cms
- 0.69mm/N
- Xmech
- 17
Everything else Wavecor lists
LF · Primary · 8″
- Fs
- 15Hz
- Sd
- 206cm²
- Cms
- 0.69mm/N
- Mms
- 162g
- Qms
- 19
- Vas
- 41.6L
- Xmech
- 17
- Diameter
- 222.3mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
RumoH | £174.01, the lowest price | Stock not listed | Visit shop at RumoH | |
Lautsprechershop | £174.44 | 0.2% above the lowest price | Special order | Visit shop at Lautsprechershop |
Best price over time
Tracked since 28 Sep
