Overview
LF DriverWS series
Visaton

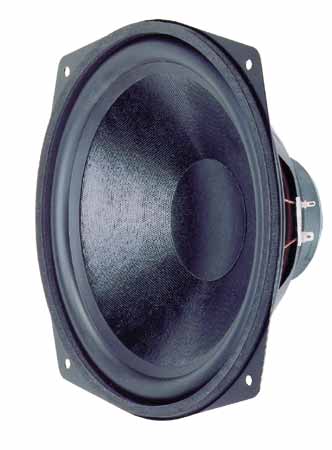

Visaton WS 25 E - 8 OHM
Visaton WS 25 E - 8 OHM is a 10" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 34Hz, Qts 1.43, Vas 113L, Xmax 6mm, sensitivity 83.9dB, plus 208cm³ Vd and 12 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
80W
Sensitivity
83.9dB
88.0dBmanufacturer; using T/S-derived value (4.1dB delta).
EBP
12
Sealed alignment
Vd
208cm³
T/S Parameters
Valid
Fs34Hz
Qts1.43
Qes2.92
Qms2.8
Vas113.0L
Re5.9Ω
Le0.80mH
BL3.8Tm
Sd346cm²
Mms33g
Xmax6.0mm
SPL84dB
Power80W
Impedance8Ω
F High6000Hz
Voice Coil25mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter250.0mm
Cutout Diameter225.0mm
