Overview
LF DriverWS series
Visaton

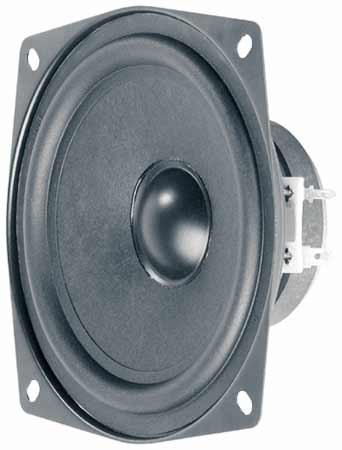

Visaton WS 13 E - 8 Ohm
Visaton WS 13 E - 8 Ohm is a 5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 83Hz, Qts 1.08, Vas 7.7L, Xmax 7.5mm, sensitivity 86.5dB, plus 65cm³ Vd and 53 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
40W
Sensitivity
86.5dB
EBP
53
Either alignment
Vd
65cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence806 selected pixels of 1,407
T/S Parameters
Valid
Fs83Hz
Qts1.08
Qes1.56
Qms3.5
Vas7.7L
Re7.7Ω
Le0.80mH
BL3.6Tm
Sd87cm²
Mms5g
Xmax7.5mm
SPL87dB
Power40W
Impedance8Ω
F High12000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
Diameter130.0mm
Cutout Diameter113.0mm
