Overview
LF DriverW series
Visaton

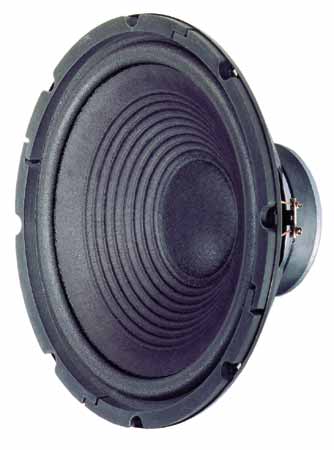

Visaton W 300 - 8 OHM
Visaton W 300 - 8 OHM is a 12" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 32Hz, Qts 0.45, Vas 190L, Xmax 14mm, sensitivity 92.6dB, plus 686cm³ Vd and 59 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
120W
Sensitivity
92.6dB
91.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
59
Either alignment
Vd
686cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response128 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
128 plotted pointsMedium confidence318 selected pixels of 719
T/S Parameters
Valid
Fs32Hz
Qts0.45
Qes0.54
Qms2.7
Vas190.0L
Re6.6Ω
Le1.80mH
BL9.4Tm
Sd490cm²
Mms43g
Xmax14.0mm
SPL93dB
Power120W
Impedance8Ω
F High2500Hz
Voice Coil50mm
Flux Density0.95T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.8kg
Diameter300.0mm
Cutout Diameter280.0mm
