LF driver · W series · 35 mm voice coil · 90 W
Visaton W 250 8Ω
8 Ω
£42.00
25%Thomann · In stock · All 7 offers
- Fs
- 45Hz
- Xmax
- 3mm
- SPL
- 93dB
- Pe
- 90W
- BL
- 6.4T·m
- Vd
- 108cm³
- Qts
- 0.78
- Vas
- 135L

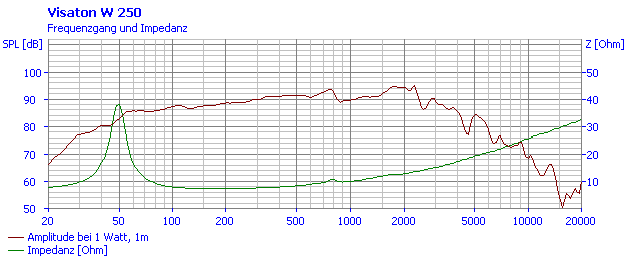

Published graphs
Visaton W 250 is an 8 ohm LF driver rated at 90 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.78, Vas 135 L, Xmax 3 mm, sensitivity 92.9 dB, plus 108 cm³ Vd and 45 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £42.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.78
- Qes
- 1
- Qms
- 3.6
- Vas
- 135L
- Re
- 6.8Ω
- Le
- 1.10mH
Motor and cone
- BL
- 6.4T·m
- Sd
- 360cm²
- Mms
- 27g
- Xmax Derived
- 3mm
- Vd †
- 108cm³
- Voice coil
- 35mm
- Flux density
- 1T
Power and response
- Sensitivity †
- 92.9dB
- Manufacturer sensitivity
- 90dB
- Power
- 90W
- Impedance
- 8Ω
- High limit
- 6000Hz
- EBP †
- 45 · Leans sealed
Size and mounting
- Cutout
- 236mm
- Weight
- 1.5kg
Other published values
- Xmech
- 10
- Power Peak
- 130
Sensitivity shows 92.9 dB, calculated from the T/S values. Visaton publishes 90.0 dB, 2.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
LF · Primary
- BL
- 6.4T·m
- Fs
- 45Hz
- Le
- 1.10mH
- Re
- 6.8Ω
- Sd
- 360cm²
- Mms
- 27g
- Qes
- 1
- Qms
- 3.6
- Qts
- 0.78
- SPL
- 92.9dB
- Vas
- 135L
- Xmax
- 3mm
- Xmech
- 10
- Power
- 90W
- Impedance
- 8Ω
- Power Peak
- 130
- Flux density
- 1T
- Sensitivity
- 90dB
- Calculated sensitivity †
- 92.9dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 90dB
- Voice coil
- 35mm
- Weight
- 1.5kg
- Cutout
- 236mm
