Overview
LF DriverW series
Visaton

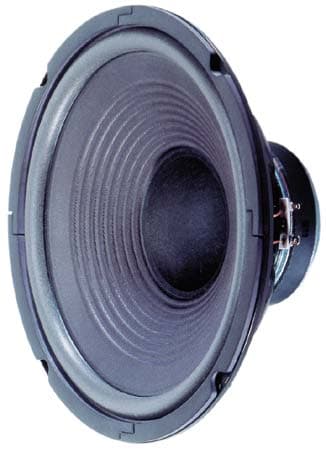

Visaton W 250 - 8 OHM
Visaton W 250 - 8 OHM is a - 8 ohm LF driver rated at 90W RMS. The validated T/S data includes Fs 45Hz, Qts 0.78, Vas 135L, Xmax 10mm, sensitivity 92.9dB, plus 360cm³ Vd and 45 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
8Ω
RMS Power
90W
Sensitivity
92.9dB
90.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
45
Sealed alignment
Vd
360cm³
T/S Parameters
Valid
Fs45Hz
Qts0.78
Qes1.00
Qms3.6
Vas135.0L
Re6.8Ω
Le1.10mH
BL6.4Tm
Sd360cm²
Mms27g
Xmax10.0mm
SPL93dB
Power90W
Impedance8Ω
F High6000Hz
Voice Coil35mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Cutout Diameter236.0mm
