Visaton SC 4.7 ND - 4 OHM – 2″ 2W Woofer, 4 Ohm

Visaton SC 4.7 ND - 4 OHM 4Ω

LF Driver

WatchWatch price SimSimulate

Media

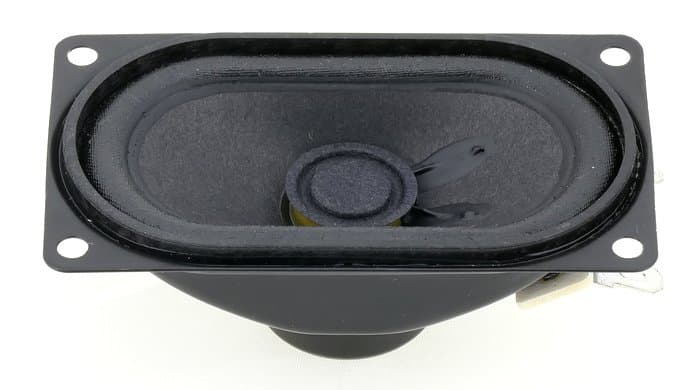

Visaton SC 4.7 ND - 4 OHM 2 inch 4 ohm loudspeaker driver view 1

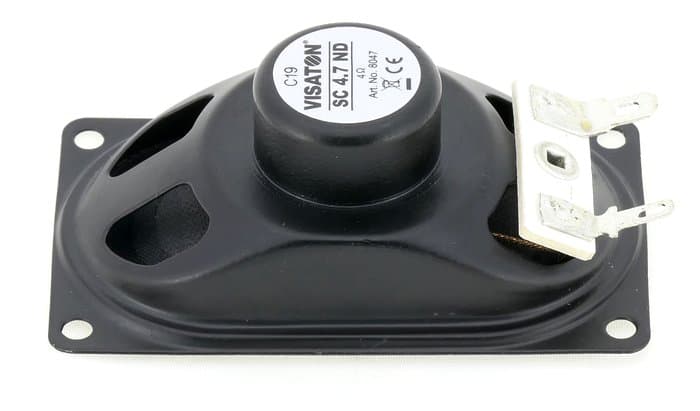

Visaton SC 4.7 ND - 4 OHM 2 inch 4 ohm loudspeaker driver view 2

Visaton SC 4.7 ND - 4 OHM 2 inch 4 ohm loudspeaker driver view 3

Visaton SC 4.7 ND - 4 OHM 2 inch 4 ohm loudspeaker driver view 4

Visaton SC 4.7 ND - 4 OHM 2 inch 4 ohm loudspeaker driver view 5

Visaton SC 4.7 ND - 4 OHM 2 inch 4 ohm loudspeaker driver view 6

Auto-advancing

Overview

LF DriverSC series

Visaton SC 4.7 ND - 4 OHM

Visaton SC 4.7 ND - 4 OHM is a 2" 4 ohm LF driver rated at 2W RMS. The validated T/S data includes Fs 360Hz, Qts 2.80, Vas 0.2L, Xmax 0.5mm, sensitivity 83.6dB, plus 1cm³ Vd and 62 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size

2"

Impedance

4Ω

RMS Power

2W

Sensitivity

83.6dB

81.0dBmanufacturer; using T/S-derived value (2.6dB delta).

EBP

62

Either alignment

V_d

1cm³

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

1 curve

frequency response240 ptsp1medium

Curve provenanceInspect 1 trace

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

frequency response
Frequency response
Trace datasheet-response-trace-poc/v1
240 plotted pointsMedium confidence1,052 selected pixels of 1,695
Manufacturer datasheet, page 1

T/S Parameters

Valid

Canonical

Fs360Hz

Qts2.80

Qes5.81

Qms5.4

Vas0.2L

Re3.6Ω

Le0.20mH

BL0.9Tm

Sd16cm²

Mms1g

Xmax0.5mm

SPL84dB

Power2W

Impedance4Ω

F Low220Hz

F High20000Hz

Voice Coil14mm

Flux Density0.70T

What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight41.0kg

Diameter70.0mm

Cutout Diameter35.0mm
