Visaton K 50 SQ - 8 OHM 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverK series
Visaton

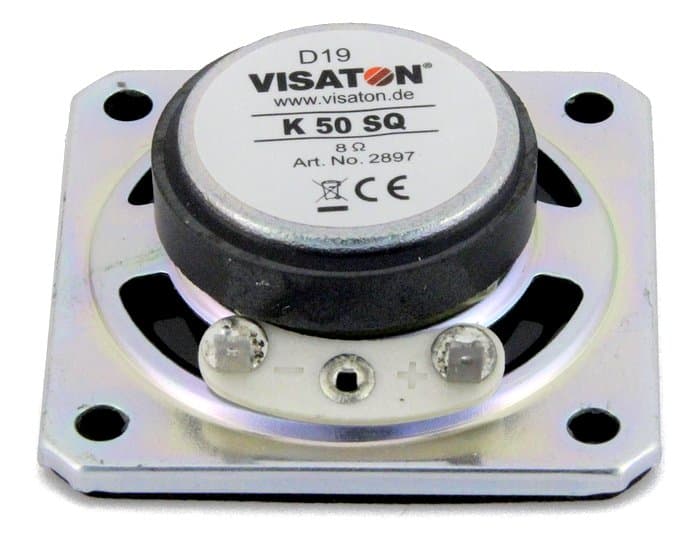

Visaton K 50 SQ - 8 OHM
Visaton K 50 SQ - 8 OHM is a 2" 8 ohm LF driver rated at 2W RMS. The validated T/S data includes Fs 480Hz, Qts 3.42, Vas 0.1L, Xmax 1mm, sensitivity 81.6dB, plus 1cm³ Vd and 66 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
8Ω
RMS Power
2W
Sensitivity
81.6dB
83.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
66
Either alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence892 selected pixels of 1,266
T/S Parameters
Valid
Fs480Hz
Qts3.42
Qes7.32
Qms6.4
Vas0.1L
Re7.3Ω
BL1.1Tm
Sd13cm²
Mms0g
Xmax1.0mm
SPL82dB
Power2W
Impedance8Ω
F Low250Hz
F High10000Hz
Voice Coil14mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight50.0kg
Diameter50.0mm
Cutout Diameter45.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
K 50 SQ - 8 OHM
2"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Visaton
K 50 SQ
2"
Xmax1mm0%
Qts3.420%
BL1.1Tm0%
Vas0.1L0%
Qes7.320%
