Overview
LF DriverFRS series
Visaton

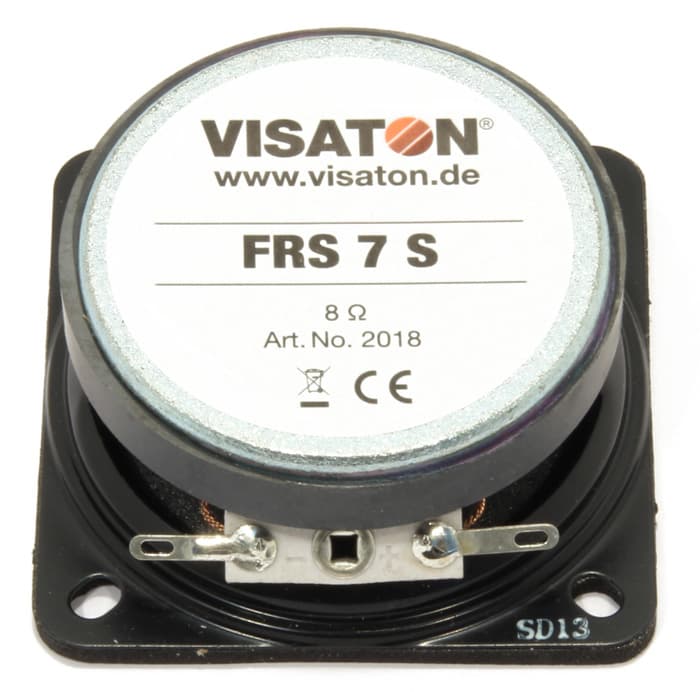

Visaton FRS 7 S - 8 OHM
Visaton FRS 7 S - 8 OHM is a 2.5" 8 ohm LF driver rated at 8W RMS. The validated T/S data includes Fs 150Hz, Qts 1.46, Vas 0.9L, Xmax 1.5mm, sensitivity 83.8dB, plus 3cm³ Vd and 75 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.5"
Impedance
8Ω
RMS Power
8W
Sensitivity
83.8dB
EBP
75
Either alignment
Vd
3cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response209 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
209 plotted pointsMedium confidence558 selected pixels of 558
T/S Parameters
Valid
Fs150Hz
Qts1.46
Qes2.01
Qms5.4
Vas0.9L
Re7.2Ω
Le0.60mH
BL1.8Tm
Sd22cm²
Mms1g
Xmax1.5mm
SPL84dB
Power8W
Impedance8Ω
F Low120Hz
F High20000Hz
Voice Coil14mm
Flux Density1.20T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Diameter65.0mm
Cutout Diameter61.0mm
