LF DriverFR series
Visaton

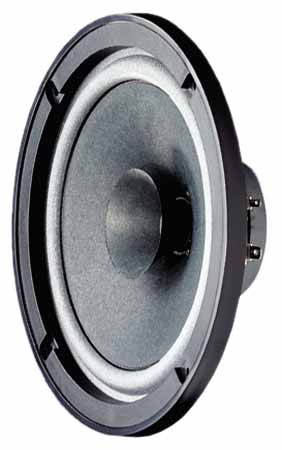

Visaton FR 6,5" - 8 Ohm
Visaton FR 6,5" - 8 Ohm is a 6.5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 75Hz, Qts 1.96, Vas 16L, Xmax 3mm, sensitivity 85.2dB, plus 39cm³ Vd and 23 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
40W
Sensitivity
85.2dB
87.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
23
Sealed alignment
Vd
39cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence780 selected pixels of 1,237
T/S Parameters
Valid
Fs75Hz
Qts1.96
Qes3.26
Qms4.9
Vas16.0L
Re6.8Ω
Le0.80mH
BL2.5Tm
Sd129cm²
Mms6g
Xmax3.0mm
SPL85dB
Power40W
Impedance8Ω
F Low70Hz
F High20000Hz
Voice Coil20mm
Flux Density0.75T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.5kg
Diameter160.0mm
Cutout Diameter143.0mm
