Overview
LF DriverFR series
Visaton

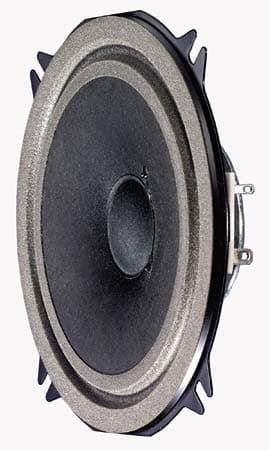

Visaton FR 12 - 4 OHM
Visaton FR 12 - 4 OHM is a 5" 4 ohm LF driver rated at 15W RMS. The validated T/S data includes Fs 110Hz, Qts 1.87, Vas 8.7L, Xmax 2.5mm, sensitivity 88.2dB, plus 22cm³ Vd and 39 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
4Ω
RMS Power
15W
Sensitivity
88.2dB
85.0dBmanufacturer; using T/S-derived value (3.2dB delta).
EBP
39
Sealed alignment
Vd
22cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence867 selected pixels of 1,692
T/S Parameters
Valid
Fs110Hz
Qts1.87
Qes2.80
Qms5.6
Vas8.7L
Re3.4Ω
Le0.10mH
BL1.7Tm
Sd87cm²
Mms4g
Xmax2.5mm
SPL88dB
Power15W
Impedance4Ω
F Low70Hz
F High18000Hz
Voice Coil20mm
Flux Density0.80T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.3kg
Diameter130.0mm
Cutout Diameter114.0mm
