LF DriverFR series
Visaton

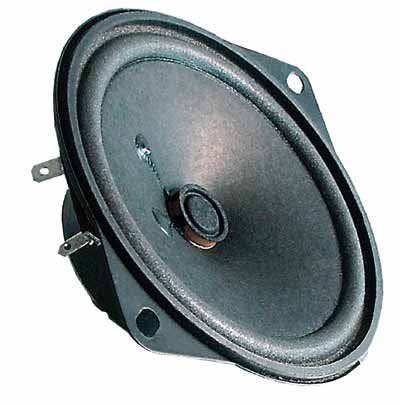

Visaton FR 10 F - 4 OHM
Visaton FR 10 F - 4 OHM is a 4" 4 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 150Hz, Qts 1.52, Vas 2.2L, Xmax 4mm, sensitivity 87.7dB, plus 21cm³ Vd and 75 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
20W
Sensitivity
87.7dB
86.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
75
Either alignment
Vd
21cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsSource file SHA-256 3a4ef4902855…Medium confidence532 selected pixels of 1,037 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsSource file SHA-256 3a4ef4902855…Medium confidence431 selected pixels of 535
T/S Parameters
Valid
Fs150Hz
Qts1.52
Qes1.99
Qms6.5
Vas2.2L
Re3.7Ω
Le0.35mH
BL1.7Tm
Sd52cm²
Mms2g
Xmax4.0mm
SPL88dB
Power20W
Impedance4Ω
F Low100Hz
F High22000Hz
Voice Coil14mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Diameter100.0mm
Cutout Diameter94.0mm
