Overview
LF DriverBG series
Visaton

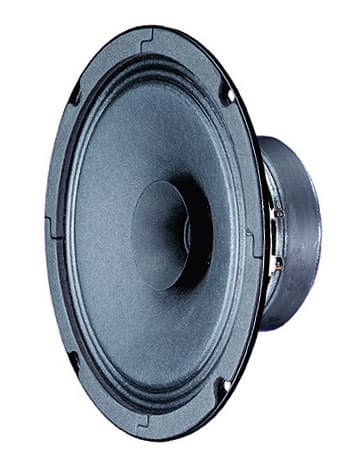

Visaton BG 17 - 8 Ohm
Visaton BG 17 - 8 Ohm is a 6.5" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 120Hz, Qts 0.74, Vas 8.2L, Xmax 2mm, sensitivity 93.6dB, plus 29cm³ Vd and 122 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £18.90.
Size
6.5"
Impedance
8Ω
RMS Power
40W
Sensitivity
93.6dB
EBP
122
Vented alignment
Vd
29cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence523 selected pixels of 523
T/S Parameters
Valid
Fs120Hz
Qts0.74
Qes0.98
Qms2.9
Vas8.2L
Re6.3Ω
Le0.70mH
BL5.7Tm
Sd143cm²
Mms7g
Xmax2.0mm
SPL94dB
Power40W
Impedance8Ω
F Low80Hz
F High20000Hz
Voice Coil20mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£22.73
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
thomann
£18.90
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.7kg
Diameter160.0mm
Cutout Diameter146.0mm
