Overview
LF Driver
Tang Band

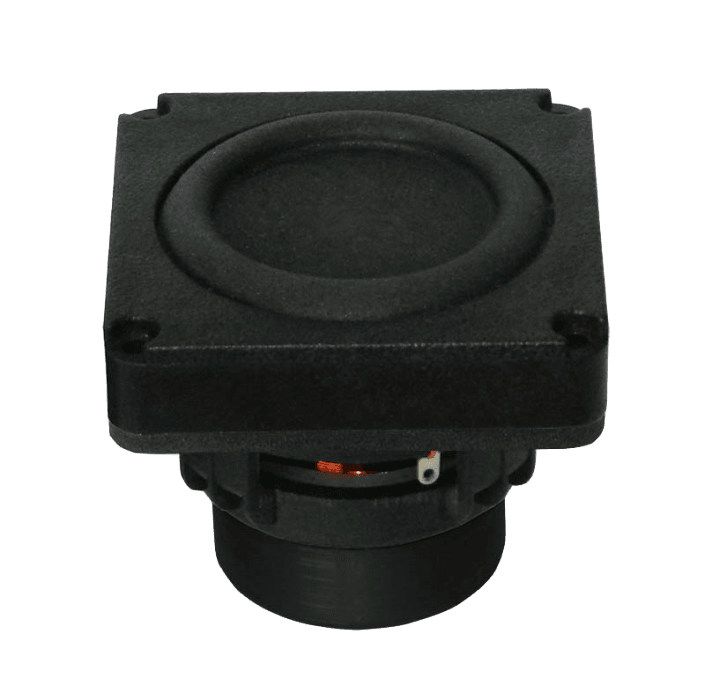

Tang Band W2-1625SA
Tang Band W2-1625SA is a 2" 6.6 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 90Hz, Qts 0.31, Vas 0.3L, Xmax 2mm, sensitivity 80.4dB, plus 3cm³ Vd and 273 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2"
Impedance
6.6Ω
RMS Power
20W
Sensitivity
80.4dB
EBP
273
Vented alignment
Vd
3cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,726 selected pixels of 3,009 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,390 selected pixels of 2,390
T/S Parameters
Valid
Fs90Hz
Qts0.31
Qes0.33
Qms3.9
Vas0.3L
Re6.6Ω
Le0.21mH
BL5.2Tm
Sd15cm²
Mms2g
Xmax2.0mm
SPL80dB
Power20W
Impedance7Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
