Overview
LF Driver
Tang Band

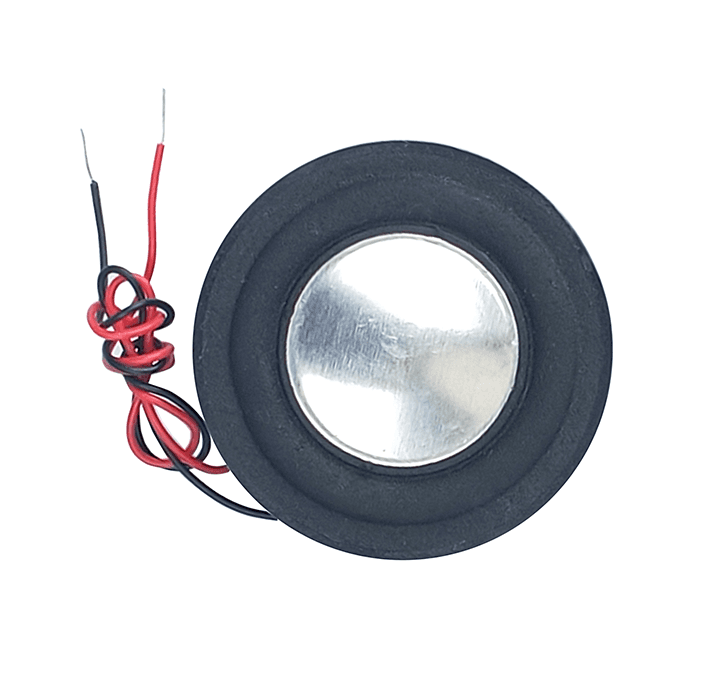

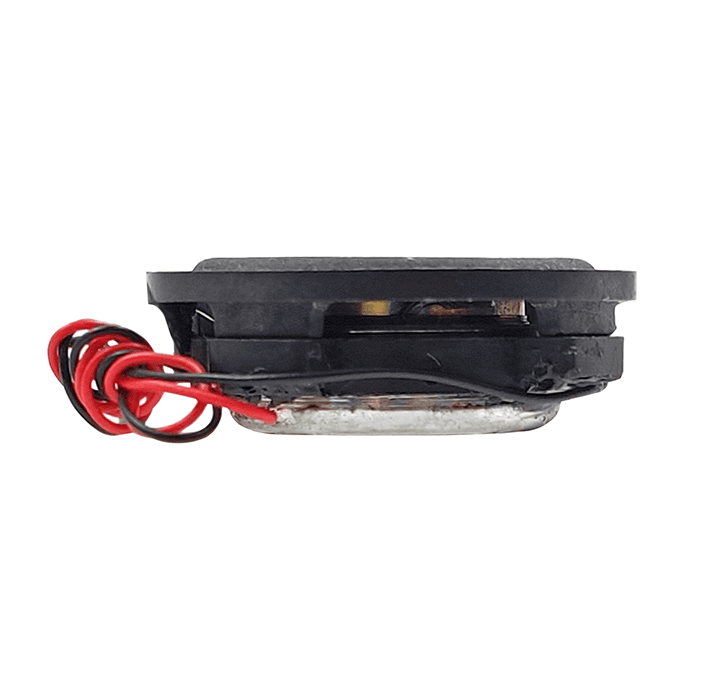

Tang Band W1-2361S
Tang Band W1-2361S is a 1" 3.6 ohm LF driver rated at 1W RMS. The validated T/S data includes Fs 220Hz, Qts 0.42, Vas 0.0L, Xmax 0.3mm, sensitivity 77.8dB, plus 0cm³ Vd and 250 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
1"
Impedance
3.6Ω
RMS Power
1W
Sensitivity
77.8dB
EBP
250
Vented alignment
Vd
0cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,545 selected pixels of 2,853 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,578 selected pixels of 2,578
T/S Parameters
Valid
Fs220Hz
Qts0.42
Qes0.88
Qms0.8
Vas0.0L
Re3.6Ω
Le0.00mH
BL1.0Tm
Sd3cm²
Mms0g
Xmax0.3mm
SPL78dB
Power1W
Impedance4Ω
