Overview
LF Driver
Tang Band

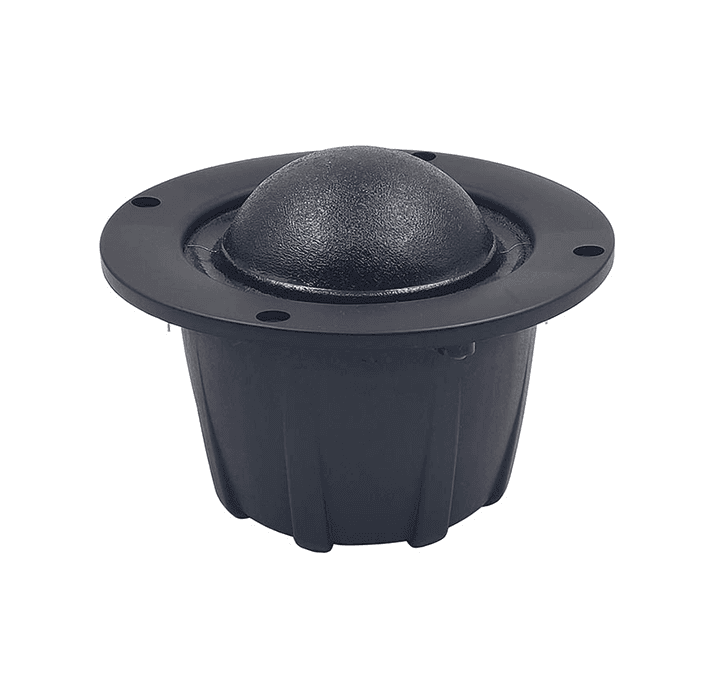

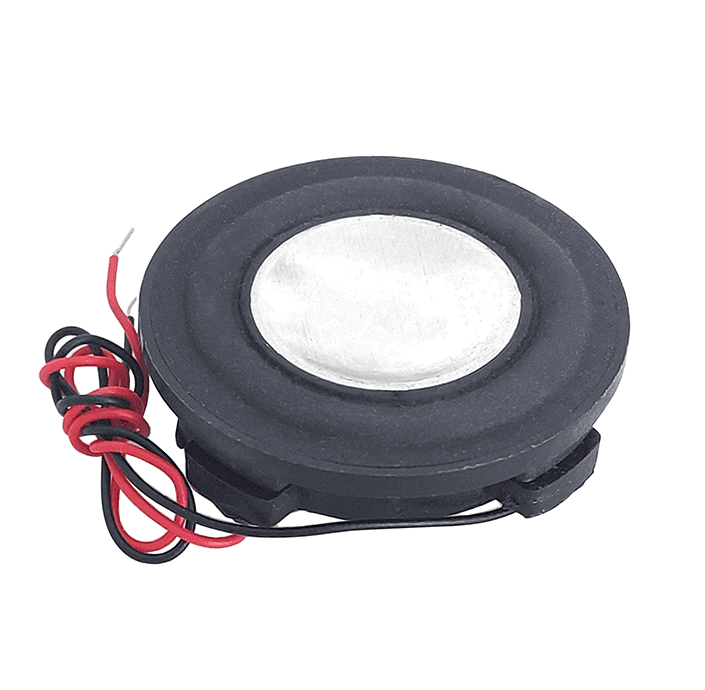

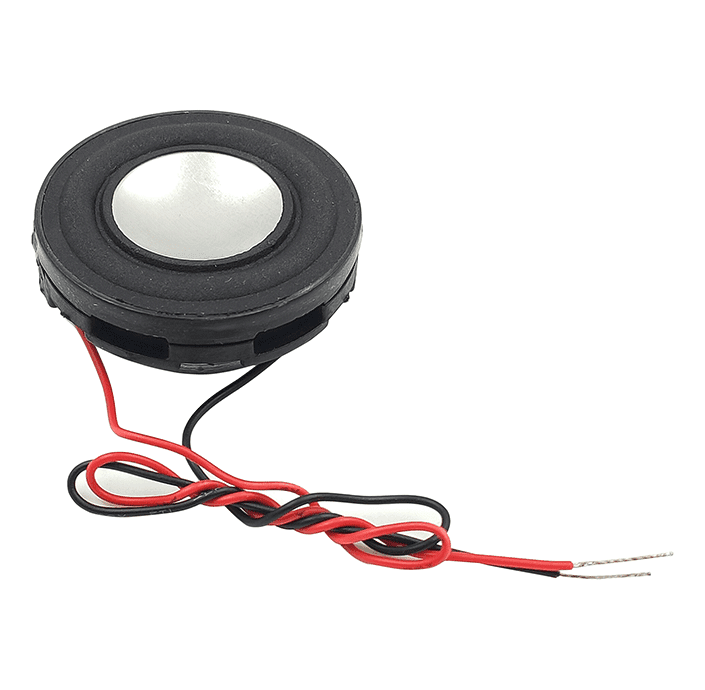

Tang Band W1-2025SA
Tang Band W1-2025SA is a 1" 3.6 ohm LF driver rated at 2W RMS. The validated T/S data includes Fs 200Hz, Qts 0.46, Vas 0.1L, Xmax 0.8mm, sensitivity 80.5dB, plus 0cm³ Vd and 351 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
1"
Impedance
3.6Ω
RMS Power
2W
Sensitivity
80.5dB
EBP
351
Vented alignment
Vd
0cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence936 selected pixels of 1,726 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,593 selected pixels of 2,593
T/S Parameters
Valid
Fs200Hz
Qts0.46
Qes0.57
Qms2.4
Vas0.1L
Re3.6Ω
Le0.02mH
BL2.1Tm
Sd6cm²
Mms1g
Xmax0.8mm
SPL81dB
Power2W
Impedance4Ω
