Overview
LF Driver
Tang Band

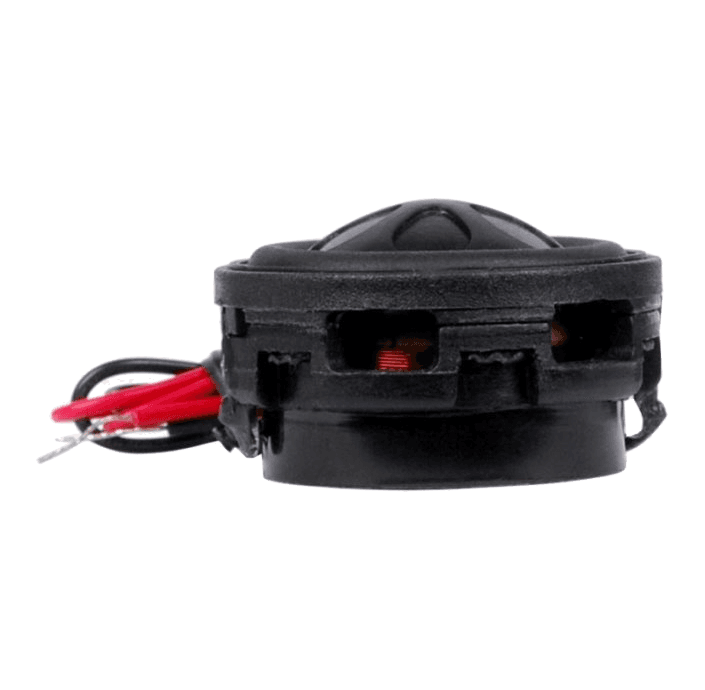

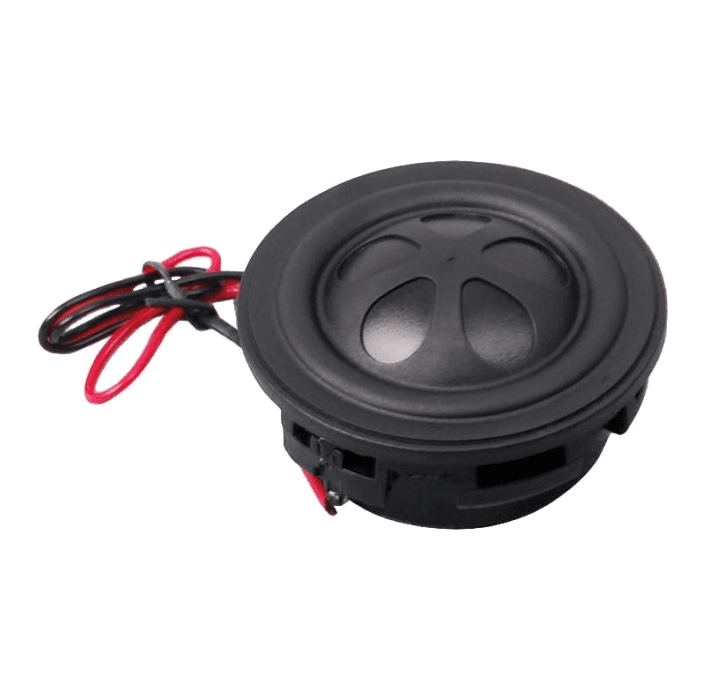

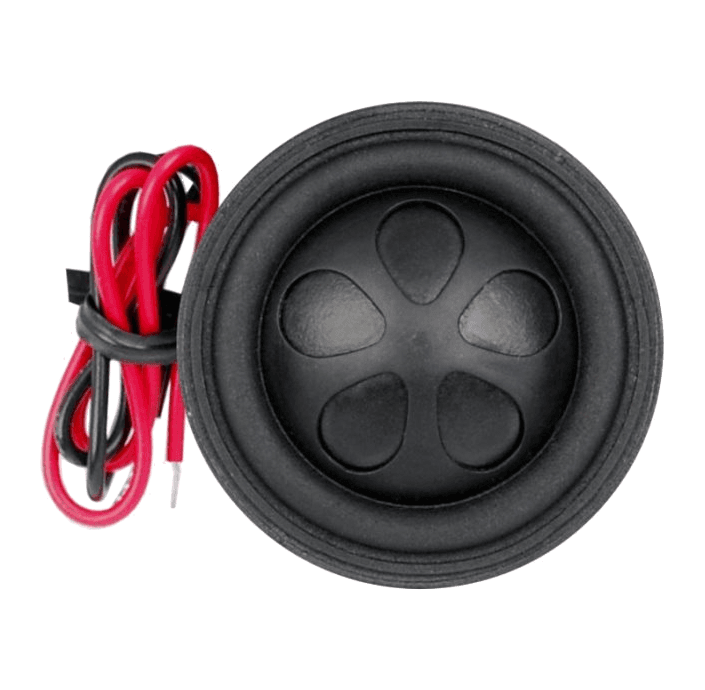

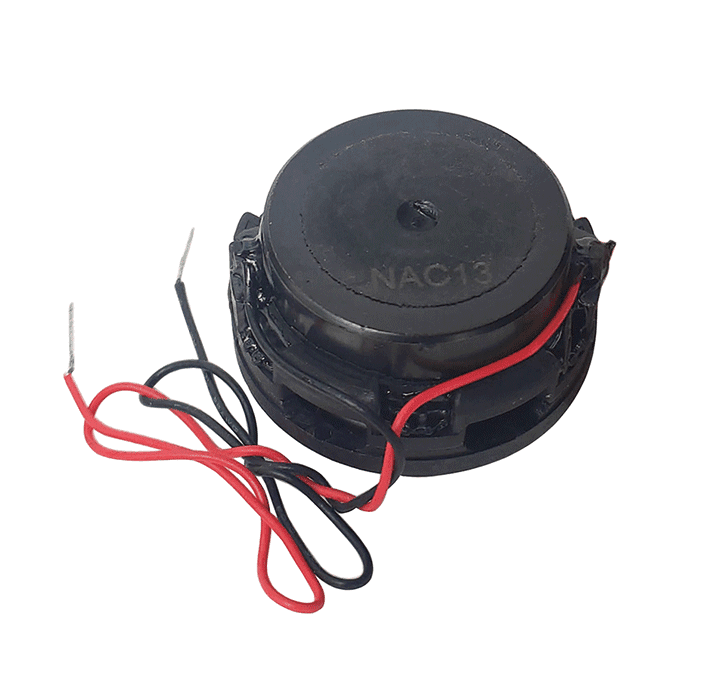

Tang Band W1-1931S
Tang Band W1-1931S is a 1" 3.6 ohm LF driver rated at 2W RMS. The validated T/S data includes Fs 170Hz, Qts 0.46, Vas 0.0L, Xmax 1.2mm, sensitivity 74.6dB, plus 1cm³ Vd and 315 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
1"
Impedance
3.6Ω
RMS Power
2W
Sensitivity
74.6dB
76.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
315
Vented alignment
Vd
1cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,176 selected pixels of 2,119 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,580 selected pixels of 2,580
T/S Parameters
Valid
Fs170Hz
Qts0.46
Qes0.54
Qms3.1
Vas0.0L
Re3.6Ω
Le0.06mH
BL2.6Tm
Sd5cm²
Mms1g
Xmax1.2mm
SPL75dB
Power2W
Impedance4Ω
