Overview
LF Driver
Tang Band

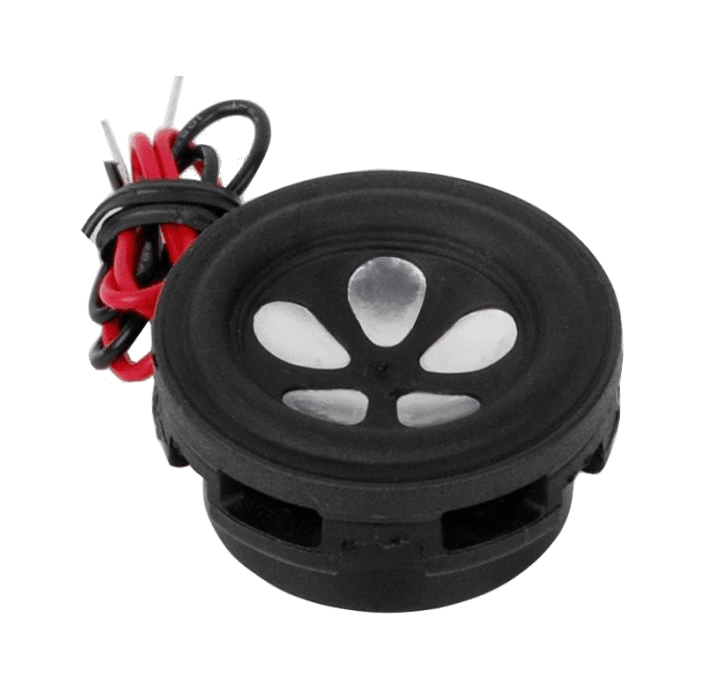

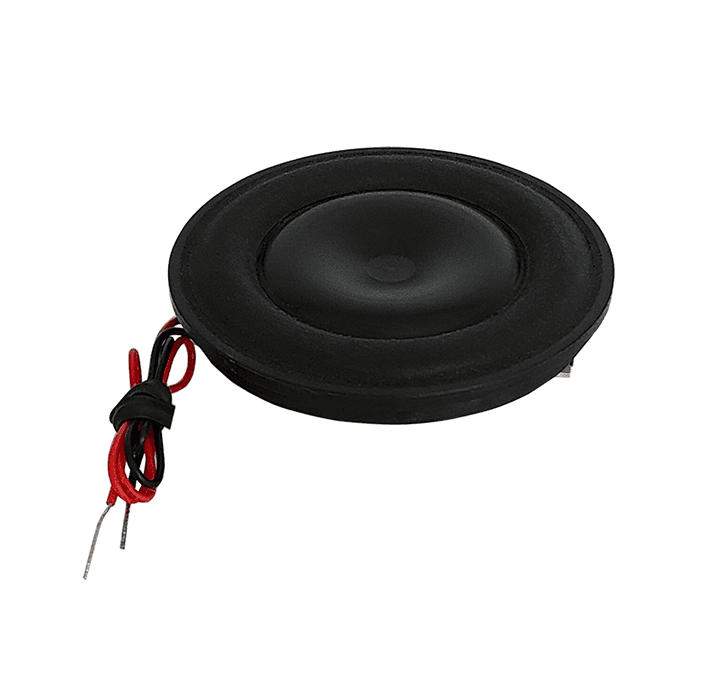

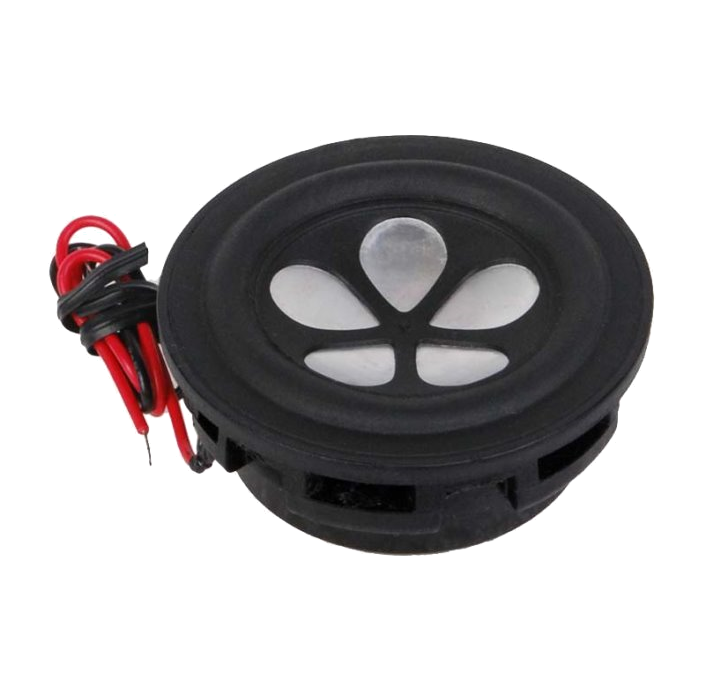

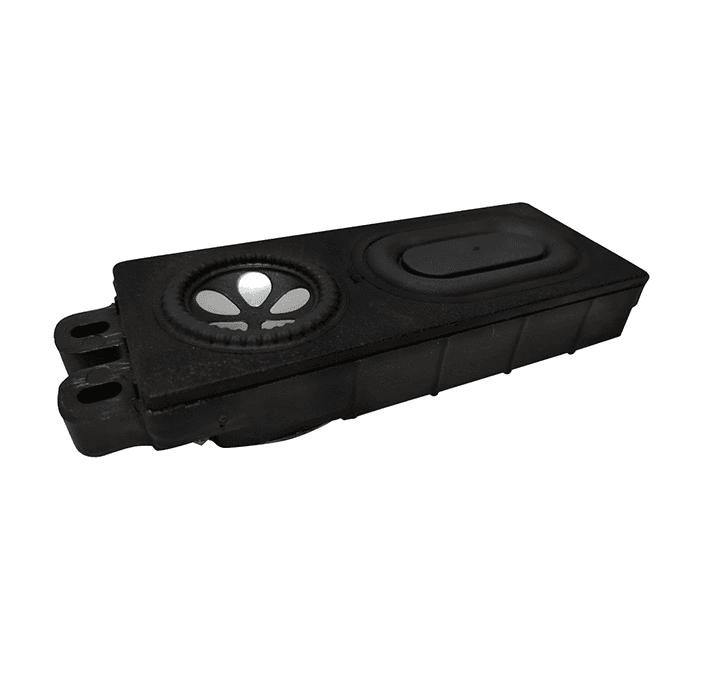

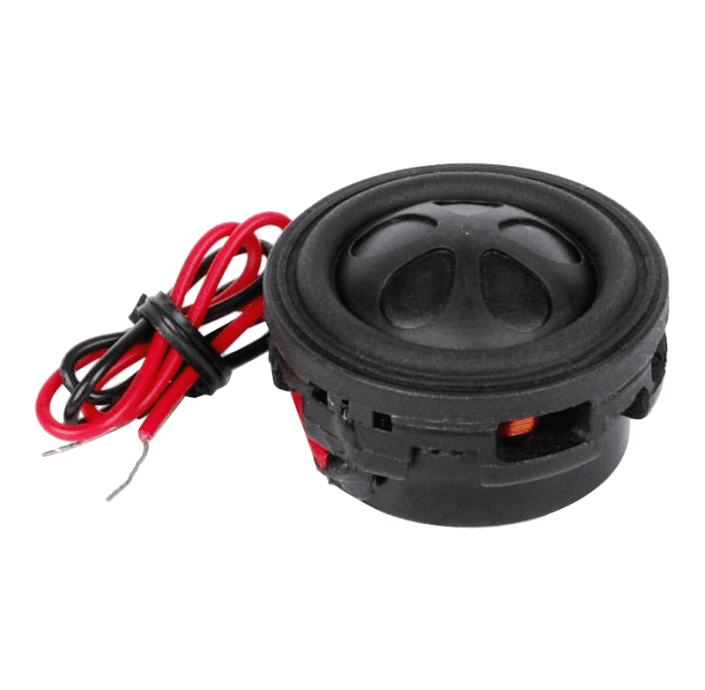

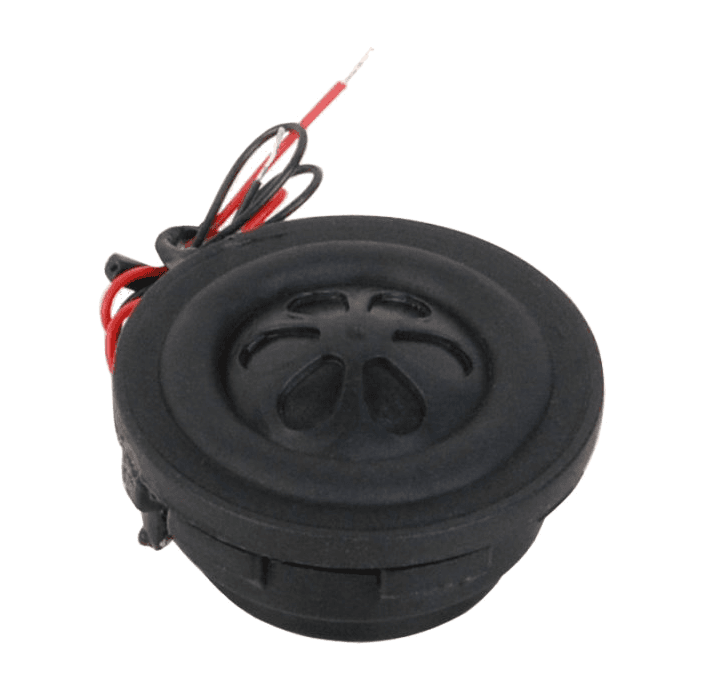

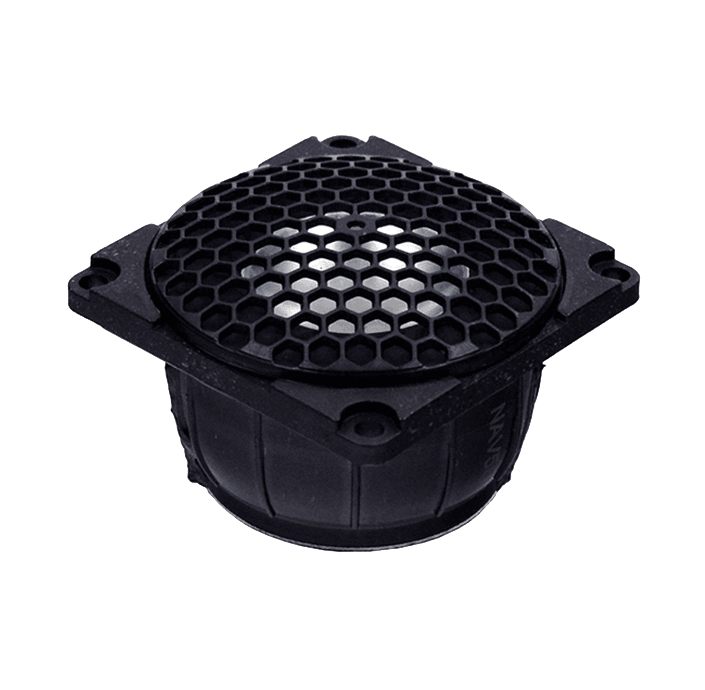

Tang Band W1-1925SB
Tang Band W1-1925SB is a 1" 3.5 ohm LF driver rated at 1W RMS. The validated T/S data includes Fs 220Hz, Qts 0.54, Vas 0.0L, Xmax 0.8mm, sensitivity 75.7dB, plus 0cm³ Vd and 268 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
1"
Impedance
3.5Ω
RMS Power
1W
Sensitivity
75.7dB
EBP
268
Vented alignment
Vd
0cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,802 selected pixels of 2,012 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,918 selected pixels of 1,920
T/S Parameters
Valid
Fs220Hz
Qts0.54
Qes0.82
Qms0.6
Vas0.0L
Re3.5Ω
Le0.01mH
BL1.1Tm
Sd2cm²
Mms0g
Xmax0.8mm
SPL76dB
Power1W
Impedance4Ω
