Sica CD 90.38/405 8Ω
Compression DriverMedia
Auto-advancing
Overview
Compression Driver
Sica

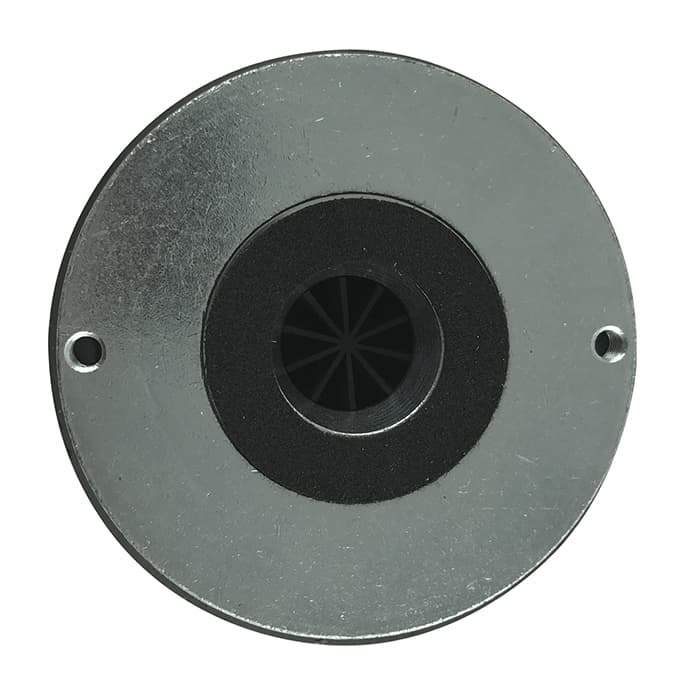

Sica CD 90.38/405
Sica CD 90.38/405 is a 1" 8 ohm compression driver rated at 30W RMS. The source-backed specifications include sensitivity 105.7dB, throat 25.4mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Frequency range (low), Frequency range (high)
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Size
1"
Impedance
8Ω
RMS Power
30W
Sensitivity
105.7dB
Technical Specifications
Fs1000Hz
Re6.0Ω
SPL106dB
Power30W
Impedance8Ω
Xover2000Hz
Throat25mm
Voice Coil38mm
Flux Density1.64T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Dimensions & Physical
Weight0.9kg
Diameter90.0mm
Overall Depth46.6mm
Bolt Circle Diameter76.0mm
