1-inch compression driver · 25 mm voice coil · 20 W
Sica CD 83.26/380 8Ω
8 Ω
No price for delivery to the UK
- SPL
- 107dB
- Pe
- 20W
- Xover
- 2500Hz
- Throat
- 25mm
- VC
- 25mm

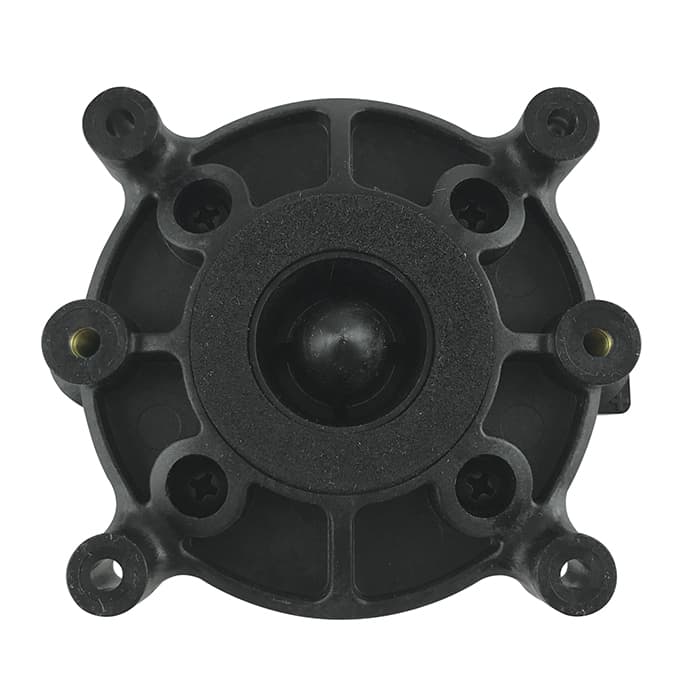

Sica CD 83.26/380 is a 1-inch 8 ohm compression driver rated at 20 W RMS. The source-backed specifications include sensitivity 107.3 dB, throat 25.4 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £33.53.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Frequency range (low), Frequency range (high)
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Thiele/Small
- Fs
- 1500Hz
- Re
- 5.5Ω
Motor and cone
- Voice coil
- 25mm
- Flux density
- 1.70T
Power and response
- Sensitivity
- 107.3dB
- Power
- 20W
- Impedance
- 8Ω
- Crossover
- 2500Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 86mm
- Bolt circle
- 95mm
- Depth
- 50.9mm
- Weight
- 0.8kg
Other published values
- Power Program
- 40
Everything else Sica lists
HF · Primary · 1″
- Fs
- 1500Hz
- Re
- 5.5Ω
- SPL
- 107.3dB
- Power
- 20W
- Impedance
- 8Ω
- Flux density
- 1.70T
- Sensitivity
- 107.3dB
- Power Program
- 40
- Throat
- 25mm
- Manufacturer sensitivity
- 107.3dB
- Voice coil
- 25mm
- Crossover
- 2500Hz
- Weight
- 0.8kg
- Diameter
- 86mm
- Depth
- 50.9mm
- Bolt circle
- 95mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports Import VAT and duty may apply | £50.37 | Back order | Visit shop at SoundImports |
