1-inch compression driver · 25 mm voice coil · 16 W
Sica CD 78.26/245 8Ω
8 Ω
£37.64
SteadySoundImports · 1 in stock · Ships from Netherlands · All 2 offers
- SPL
- 106dB
- Pe
- 16W
- Xover
- 2500Hz
- Throat
- 25mm
- VC
- 25mm

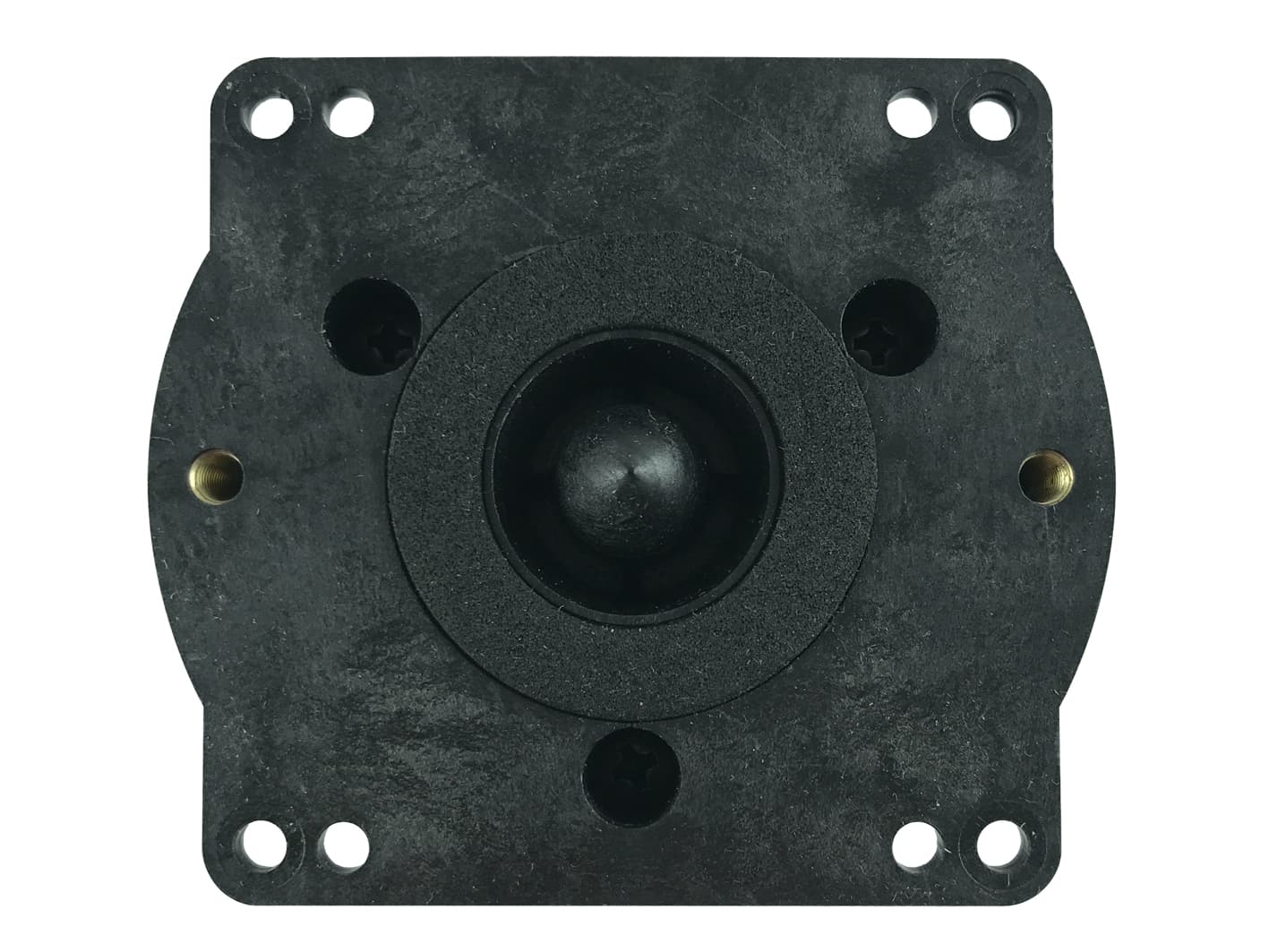

Sica CD 78.26/245 is a 1-inch 8 ohm compression driver rated at 16 W RMS. The source-backed specifications include sensitivity 105.5 dB, throat 25.4 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £25.04.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Frequency range (low), Frequency range (high)
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Thiele/Small
- Fs
- 1500Hz
- Re
- 6.3Ω
Motor and cone
- Voice coil
- 25mm
- Flux density
- 1.56T
Power and response
- Sensitivity
- 105.5dB
- Power
- 16W
- Impedance
- 8Ω
- Crossover
- 2500Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 78mm
- Bolt circle
- 95mm
- Depth
- 51.6mm
- Weight
- 0.6kg
Other published values
- Power Program
- 32
Everything else Sica lists
HF · Primary · 1″
- Fs
- 1500Hz
- Re
- 6.3Ω
- SPL
- 105.5dB
- Power
- 16W
- Impedance
- 8Ω
- Flux density
- 1.56T
- Sensitivity
- 105.5dB
- Power Program
- 32
- Throat
- 25mm
- Manufacturer sensitivity
- 105.5dB
- Voice coil
- 25mm
- Crossover
- 2500Hz
- Weight
- 0.6kg
- Diameter
- 78mm
- Depth
- 51.6mm
- Bolt circle
- 95mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports Import VAT and duty may apply | £37.64, the lowest price | 1 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 13 Sep
