Sica CD 40×70.26/N35 8Ω
Compression DriverMedia
Auto-advancing
Overview
Compression Driver
Sica

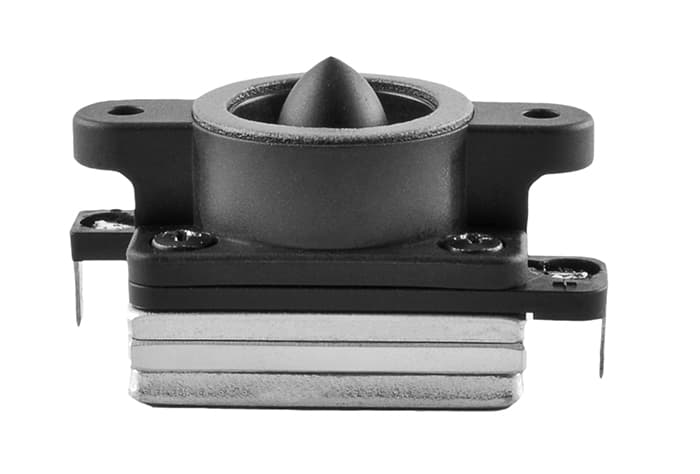

Sica CD 40×70.26/N35
Sica CD 40×70.26/N35 is a 1" 8 ohm compression driver rated at 15W RMS. The source-backed specifications include sensitivity 106dB, throat 25.4mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Frequency range (low), Frequency range (high)
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Size
1"
Impedance
8Ω
RMS Power
15W
Sensitivity
106.0dB
Technical Specifications
Fs1700Hz
Re5.3Ω
SPL106dB
Power15W
Impedance8Ω
Xover2500Hz
Throat25mm
Voice Coil25mm
Flux Density1.72T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Dimensions & Physical
Weight0.2kg
Diameter40.0mm
Overall Depth40.5mm
Bolt Circle Diameter53.0mm
