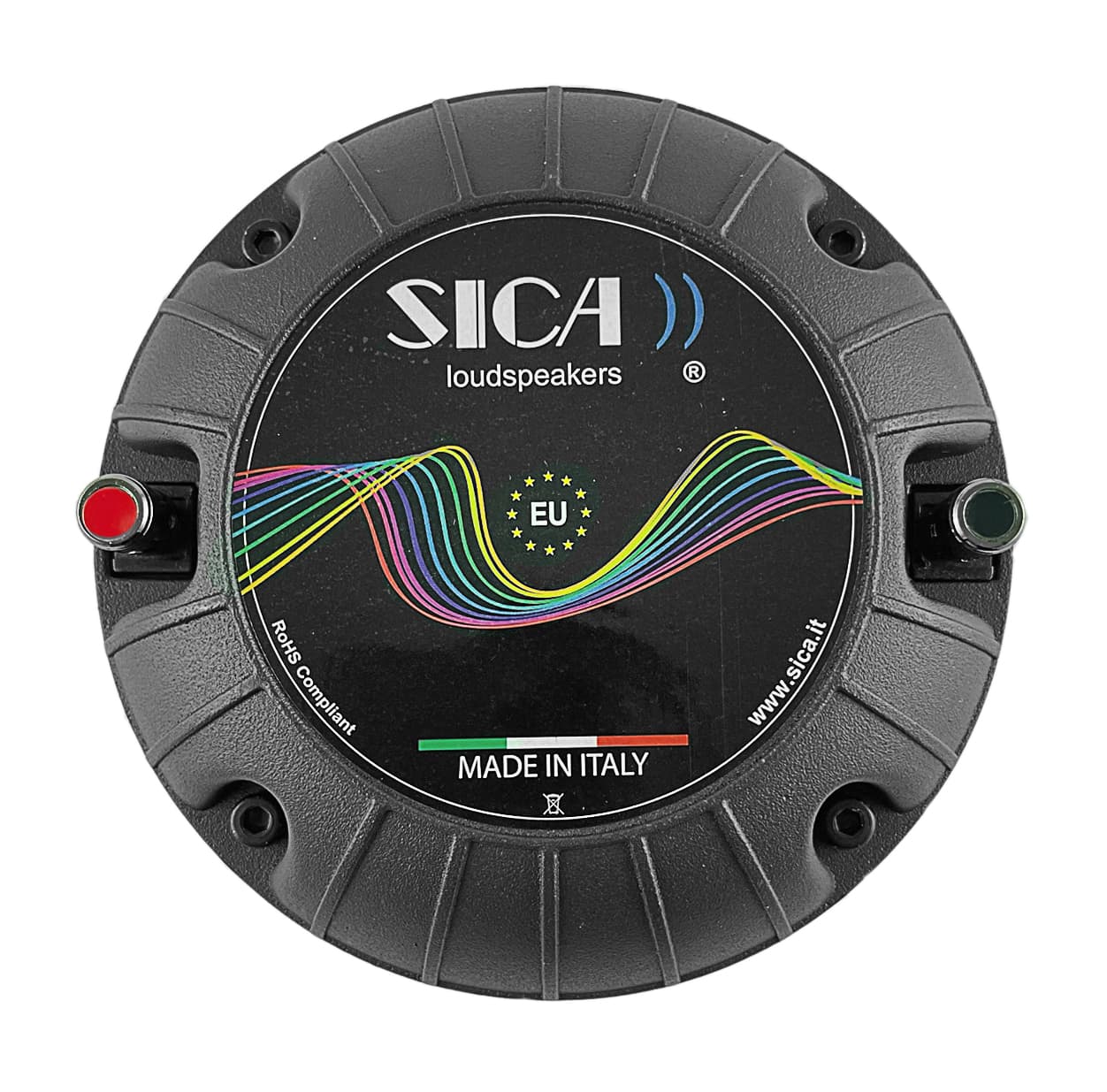

Sica CD 124.75/N353
Sica CD 124.75/N353 is a 1.5" 8 ohm compression driver rated at 110W RMS. The source-backed specifications include sensitivity 108.4dB, throat 36mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Frequency range (low), Frequency range (high)
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Size
1.5"
Impedance
8Ω
RMS Power
110W
Sensitivity
108.4dB
Technical Specifications
Fs650Hz
Re5.8Ω
SPL108dB
Power110W
Impedance8Ω
Xover1200Hz
Throat36mm
Voice Coil75mm
Flux Density2.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Dimensions & Physical
Weight2.1kg
Diameter124.0mm
Overall Depth52.7mm
Bolt Circle Diameter102.0mm
