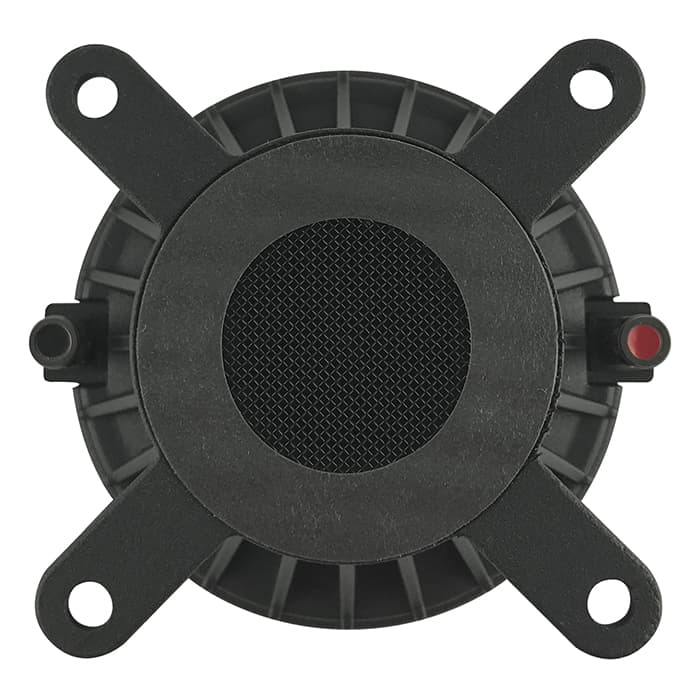

Sica CD 105.65/N220
Sica CD 105.65/N220 is a 1.5" 8 ohm compression driver rated at 80W RMS. The source-backed specifications include sensitivity 108.8dB, throat 35.5mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
Some core compression-driver specifications are not published for this record. Automated T/S validation applies to LF drivers only and is not run for this category.
Material fields not published: Frequency range (low), Frequency range (high)
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Size
1.5"
Impedance
8Ω
RMS Power
80W
Sensitivity
108.8dB
Technical Specifications
Fs650Hz
Re6.0Ω
SPL109dB
Power80W
Impedance8Ω
Xover1200Hz
Throat36mm
Voice Coil65mm
Flux Density1.93T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Dimensions & Physical
Weight1.3kg
Diameter105.0mm
Overall Depth88.7mm
Bolt Circle Diameter102.0mm
