LF driver · Extreme series

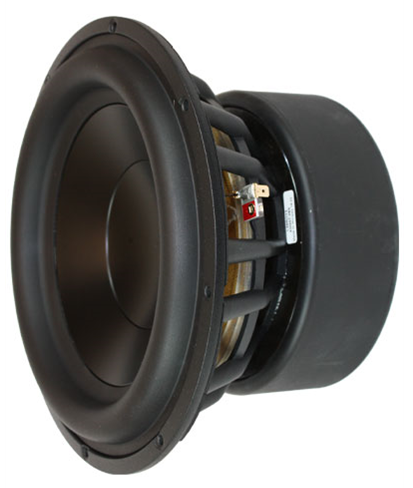

SEAS XM007-04 L26ROY3 4Ω
4 Ω
No current price
- Fs
- 25Hz
- Xmax
- 14mm
- SPL
- 85dB
- Pe
- –
- BL
- 12T·m
- Vd
- 479cm³
- Qts
- 0.42
- Vas
- 56L

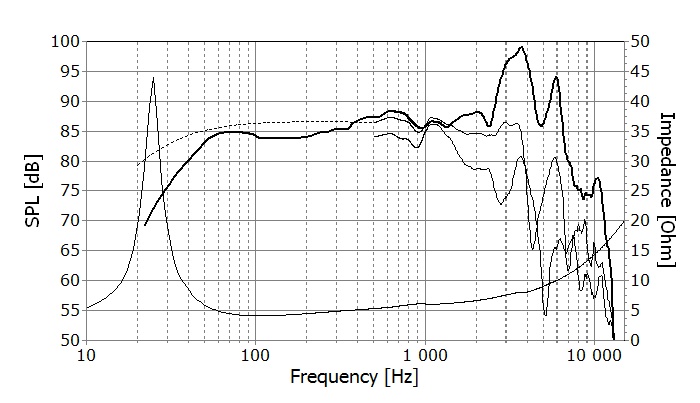

Published graphs
SEAS XM007-04 L26ROY3 is a 4 ohm LF driver. The validated T/S data includes Fs 25 Hz, Qts 0.42, Vas 56 L, Xmax 14 mm, sensitivity 84.9 dB, plus 479 cm³ Vd and 56 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 25Hz
- Qts
- 0.42
- Qes
- 0.45
- Qms
- 5.6
- Vas
- 56L
- Re
- 3.3Ω
Motor and cone
- BL
- 12T·m
- Sd
- 342cm²
- Mms
- 118g
- Xmax
- 14mm
- Vd †
- 479cm³
Power and response
- Sensitivity †
- 84.9dB
- Impedance
- 4Ω
- EBP †
- 56 · Sealed or vented
Other published values
- Cms
- 0.34mm/N
- Rms
- 3.31kg/s
† Calculated by bits from the published values
What this validation status means
Everything else SEAS lists
LF · Primary
- BL
- 12T·m
- Fs
- 25Hz
- Re
- 3.3Ω
- Sd
- 342cm²
- Cms
- 0.34mm/N
- Mms
- 118g
- Qes
- 0.45
- Qms
- 5.6
- Qts
- 0.42
- Rms
- 3.31kg/s
- SPL
- 84.9dB
- Vas
- 56L
- Xmax
- 14mm
- Impedance
- 4Ω
- Calculated sensitivity †
- 84.9dB
