SEAS XM001-04 L26ROY – 10″ 35W Woofer, 8 Ohm

SEAS XM001-04 L26ROY 8Ω

LF Driver

WatchWatch price SimSimulate

Media

SEAS XM001-04 L26ROY 10 inch 8 ohm loudspeaker driver view 1

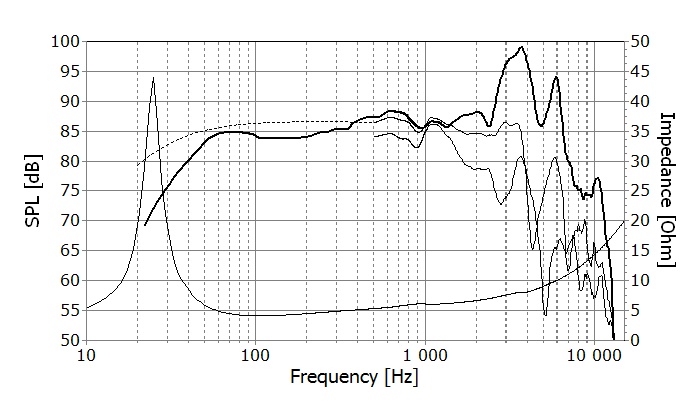

SEAS XM001-04 L26ROY 10 inch 8 ohm loudspeaker driver view 2

SEAS XM001-04 L26ROY 10 inch 8 ohm loudspeaker driver view 3

SEAS XM001-04 L26ROY 10 inch 8 ohm loudspeaker driver view 4

Auto-advancing

Overview

LF DriverExtreme series

SEAS XM001-04 L26ROY

SEAS XM001-04 L26ROY is a 10" 8 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 32Hz, Qts 0.44, Vas 143L, Xmax 2.1mm, sensitivity 91.7dB, plus 47cm³ Vd and 64 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size

10"

Impedance

8Ω

RMS Power

35W

Sensitivity

91.7dB

93.0dBmanufacturer; using T/S-derived value (1.3dB delta).

EBP

64

Either alignment

V_d

47cm³

T/S Parameters

Valid

Canonical

Fs32Hz

Qts0.44

Qes0.50

Qms4.2

Vas143.0L

Re5.7Ω

Le0.07mH

BL5.3Tm

Sd222cm²

Mms10g

Xmax2.1mm

SPL92dB

Power35W

Impedance8Ω

F Low30Hz

F High20000Hz

Voice Coil26mm

Flux Density0.80T

What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight2.6kg
