6.5-inch passive radiator · Prestige series
SEAS H9944 SP18R
No current price
Simulator support pending: 00 Simulator import needs complete passive-radiator parameters.
- Fs
- 25Hz
- Sd
- 130cm²
- Xmax
- –
- Mms
- 20g
- Vas
- 46L
- Qms
- –

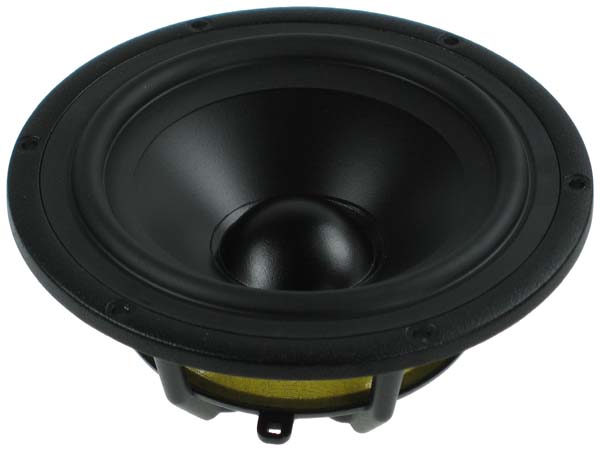

SEAS H9944 SP18R is a 6.5-inch passive radiator. The source-backed mechanical data includes Fs 25 Hz, Vas 46 L. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
No automated T/S validation result is published for this record yet.
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
Thiele/Small
- Fs
- 25Hz
- Vas
- 46L
Motor and cone
- Sd
- 130cm²
- Mms
- 20g
Other published values
- Cms
- 2.02mm/N
Everything else SEAS lists
LF · Primary · 6.5″
- Fs
- 25Hz
- Sd
- 130cm²
- Cms
- 2.02mm/N
- Mms
- 20g
- Vas
- 46L
