LF DriverPrestige series
SEAS
SEAS H1699-08/06 MR18REX/XF
SEAS H1699-08/06 MR18REX/XF is a 7" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 126Hz, Qts 0.69, Vas 3L, Xmax 3mm, sensitivity 90dB, plus 38cm³ Vd and 131 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
7"
Impedance
8Ω
RMS Power
80W
Sensitivity
90.0dB
89.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
131
Vented alignment
Vd
38cm³

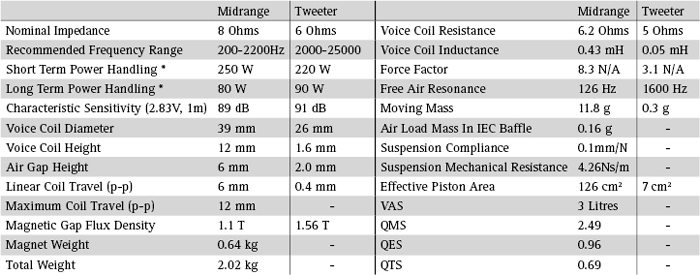

Overall Parameters
Valid
Fs126Hz
Qts0.69
Qes0.96
Qms2.5
Vas3.0L
Re6.2Ω
Le0.43mH
BL8.3Tm
Sd126cm²
Mms12g
Xmax3.0mm
SPL90dB
Power80W
Impedance8Ω
F Low200Hz
F High2200Hz
Voice Coil39mm
Flux Density1.10T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

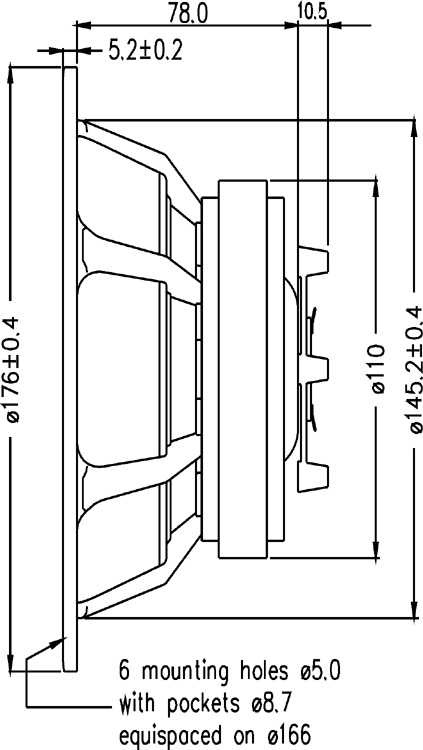

Dimensions & Physical
Weight2.0kg
Driver Components
LFPrimary
7"Fs126 Hz
Qts0.69
Qes0.96
Qms2.5
Vas3.0 L
Re6.2 Ω
Le0.43 mH
BL8.3 Tm
Sd126 cm²
Mms12 g
Xmax3.0 mm
SPL90 dB
Power80 W
Impedance8 Ω
F Low200 Hz
F High2200 Hz
Voice Coil39 mm
Flux Density1.10 T
Cms0.1
Power Peak250
Rms4.26
Xmech6
Section dimensions
Weight2020.0 kg
