LF DriverPrestige series
SEAS
SEAS H1602-04/06 L12RE/XFC
SEAS H1602-04/06 L12RE/XFC is a 4.5" 4 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 55Hz, Qts 0.30, Vas 3L, Xmax 3mm, sensitivity 83.8dB, plus 14cm³ Vd and 167 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4.5"
Impedance
4Ω
RMS Power
80W
Sensitivity
83.8dB
86.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
167
Vented alignment
Vd
14cm³

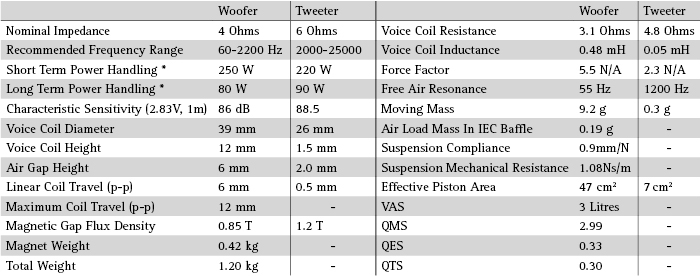

Overall Parameters
Valid
Fs55Hz
Qts0.30
Qes0.33
Qms3.0
Vas3.0L
Re3.1Ω
Le0.48mH
BL5.5Tm
Sd47cm²
Mms9g
Xmax3.0mm
SPL84dB
Power80W
Impedance4Ω
F Low60Hz
F High2200Hz
Voice Coil39mm
Flux Density0.85T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

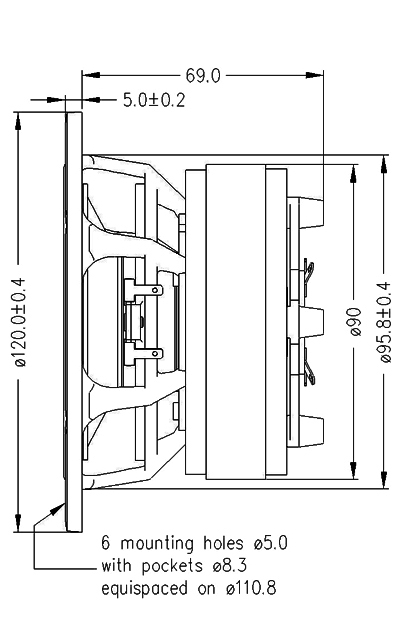

Dimensions & Physical
Weight1.2kg
Driver Components
LFPrimary
4.5"Fs55 Hz
Qts0.30
Qes0.33
Qms3.0
Vas3.0 L
Re3.1 Ω
Le0.48 mH
BL5.5 Tm
Sd47 cm²
Mms9 g
Xmax3.0 mm
SPL84 dB
Power80 W
Impedance4 Ω
F Low60 Hz
F High2200 Hz
Voice Coil39 mm
Flux Density0.85 T
Cms0.9
Power Peak250
Rms1.08
Xmech6
Section dimensions
Weight1200.0 kg
