LF DriverPrestige series
SEAS
SEAS H1411-08 A26RE4

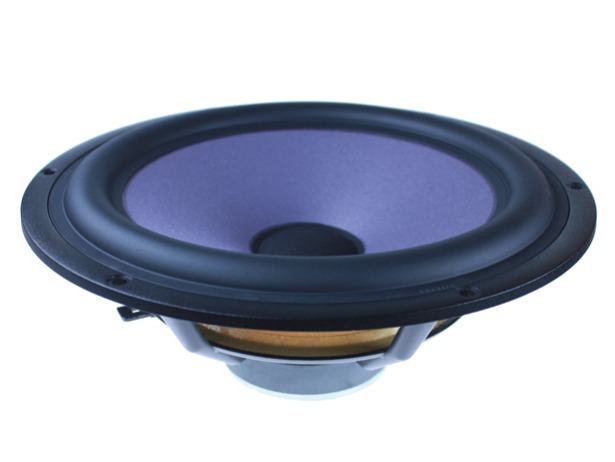

SEAS H1411-08 A26RE4 is a 1.5" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 25Hz, Qts 0.39, Vas 169L, Xmax 4mm, sensitivity 89.9dB, plus 140cm³ Vd and 58 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
1.5"
Impedance
8Ω
RMS Power
80W
Sensitivity
89.9dB
EBP
58
Either alignment
Vd
140cm³

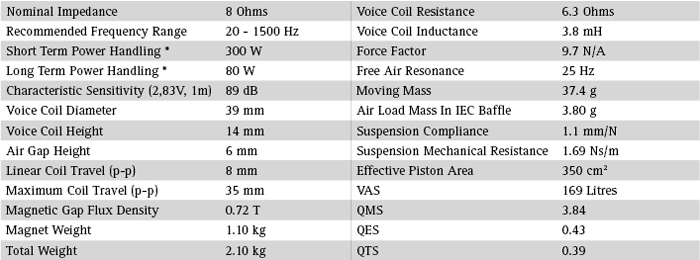

T/S Parameters
Valid
Fs25Hz
Qts0.39
Qes0.43
Qms3.8
Vas169.0L
Re6.3Ω
Le3.80mH
BL9.7Tm
Sd350cm²
Mms37g
Xmax4.0mm
SPL90dB
Power80W
Impedance8Ω
F Low20Hz
F High1500Hz
Voice Coil39mm
Flux Density0.72T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

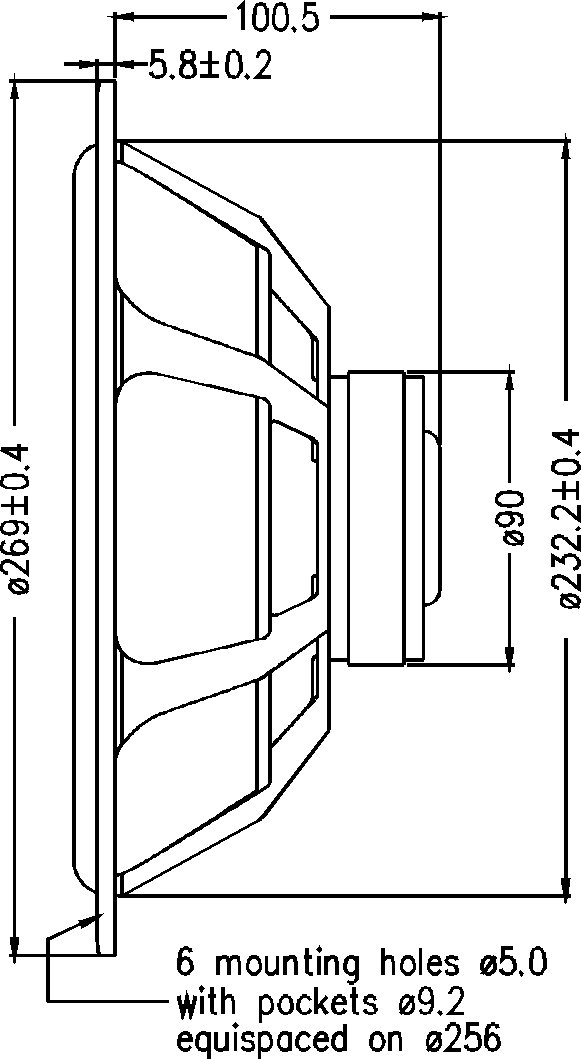

Dimensions & Physical
Weight2.1kg
